2864011

Active

Phoenix Contact

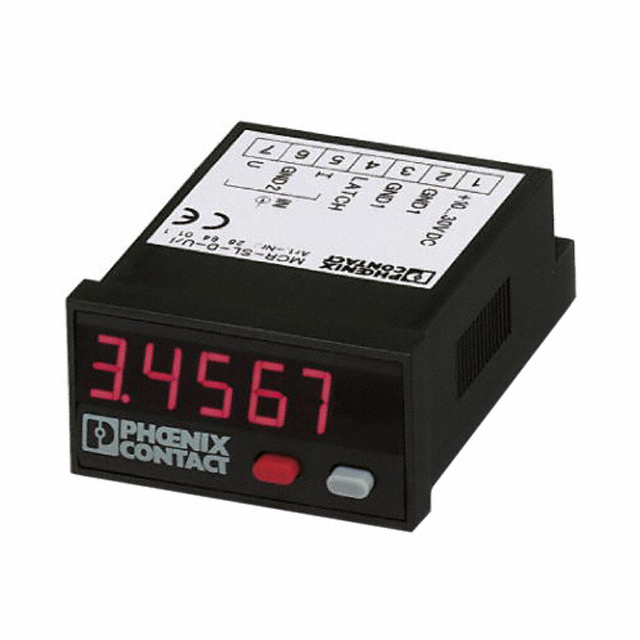

PROCESS METER LED PANEL MOUNT

Search across all available documentation for this part.

Active

Phoenix Contact

PROCESS METER LED PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	2864011

Display Characters - Height [y]	0.315 in
Display Characters - Height [y]	8 mm
Display Type	LED - Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	10 V, 20 mA
Measuring Range [Min]	0 A, 0 V
Measuring Type	Process
Number of Characters Per Row	5
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	22 mm
Termination Style	Screw Terminal
Type	Process Meter
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC
Weight	103.87 g
Weight	0.229 lb

PROCESS METER LED PANEL MOUNT

Part	Termination Style	Weight	Weight	Number of Characters Per Row	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Measuring Range [Max]	Measuring Range [Min]	Display Characters - Height [y]	Display Characters - Height [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Type	Type	Measuring Type
Phoenix Contact 2864011	Screw Terminal	103.87 g	0.229 lb	5	45 mm	22 mm	IP65 - Dust Tight, Water Resistant	-10 °C	50 °C	10 V, 20 mA	0 A, 0 V	0.315 in	8 mm	30 VDC	10 VDC	LED - Red Characters	Process Meter	Process

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 453.76

General part information

Process Meter LED - Red Characters Display Panel Mount
