151230-8422-TB

Active

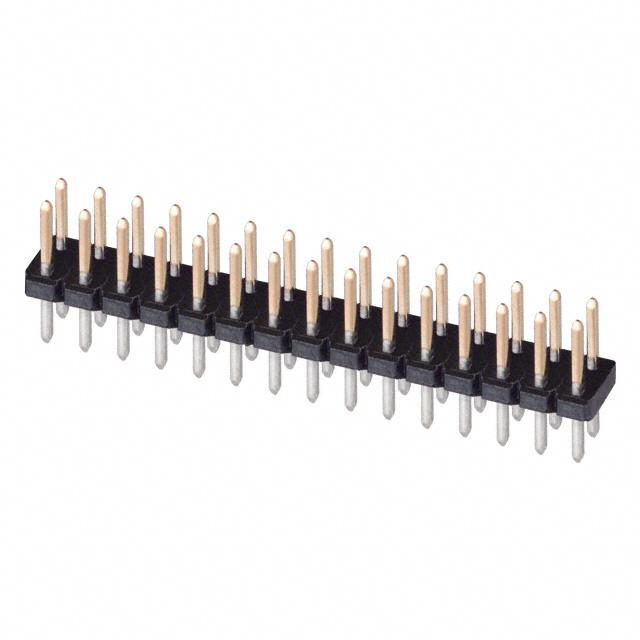

CONN HEADER VERT 30POS 2MM

Search across all available documentation for this part.

Active

CONN HEADER VERT 30POS 2MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	151230-8422-TB	151230 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.86 mm	3.3 - 3.86 mm
Contact Length - Mating	0.152 in	0.13 - 0.152 in
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height [z]	0.06 in	0.06 in
Insulation Height [z]	1.52 mm	1.52 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	30	30
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	8.36 mm	7.8 - 8.36 mm
Overall Contact Length	0.329 in	0.307 - 0.329 in
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

CONN HEADER VERT 30POS 2MM

Part	Contact Material	Material Flammability Rating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Color	Fastening Type	Number of Rows	Connector Type	Contact Finish - Post	Termination	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Style	Shrouding	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
3M 151230-8322-TB	Copper Alloy	UL94 V-0	30	0.06 in	1.52 mm	0.118 in	3 mm	0.13 in	3.3 mm	Male Pin	105 ░C	-55 °C	0.307 in	7.8 mm	200 µin	5.08 µm	Square	Black	Push-Pull	2	Header	Tin-Lead	Solder	0.079 in	2 mm	0.079 in	2 mm	Board to Board, Cable	Unshrouded	All	Gold	Through Hole	30 Áin	0.76 Ám
3M 151230-8422-TB	Copper Alloy	UL94 V-0	30	0.06 in	1.52 mm	0.118 in	3 mm	0.152 in	3.86 mm	Male Pin	105 ░C	-55 °C	0.329 in	8.36 mm	200 µin	5.08 µm	Square	Black	Push-Pull	2	Header	Tin-Lead	Solder	0.079 in	2 mm	0.079 in	2 mm	Board to Board, Cable	Unshrouded	All	Gold	Through Hole	30 Áin	0.76 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 30 position 0.079" (2.00mm)
