VND5012AK-E
ActiveSTMicroelectronics

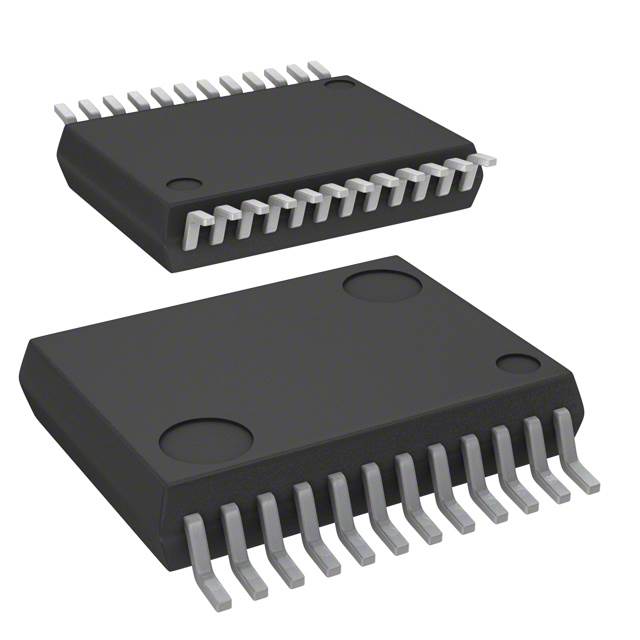

IC PWR DRVR N-CHAN 1:1 PWRSSO24
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VND5012AK-E
ActiveSTMicroelectronics
IC PWR DRVR N-CHAN 1:1 PWRSSO24
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VND5012AK-E | VND5012 Series |
|---|---|---|
| - | - | |
| Current - Output (Max) [Max] | 42 A | 42 A |
| Fault Protection | Over Temperature, Current Limiting (Fixed), Over Voltage | Over Temperature, Current Limiting (Fixed), Over Voltage |
| Features | Auto Restart | Auto Restart |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Package / Case | 24-PowerBSOP | 24-PowerBSOP |
| Package / Case [y] | 7.5 mm | 7.5 mm |
| Package / Case [y] | 0.295 in | 0.295 in |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 12 mOhm | 12 mOhm |
| Supplier Device Package | PowerSSO-24 | PowerSSO-24 |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load [Max] | 36 V | 36 V |
| Voltage - Load [Min] | 4.5 V | 4.5 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VND5012 Series
IC PWR DRVR N-CHAN 1:1 PWRSSO24
| Part | Ratio - Input:Output [custom] | Interface | Input Type | Package / Case [y] | Package / Case | Package / Case [y] | Rds On (Typ) | Fault Protection | Features | Voltage - Supply (Vcc/Vdd) | Supplier Device Package | Output Configuration | Mounting Type | Output Type | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Switch Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VND5012AK-E | 1:1 | On/Off | Non-Inverting | 7.5 mm | 24-PowerBSOP | 0.295 in | 12 mOhm | Current Limiting (Fixed), Over Temperature, Over Voltage | Auto Restart | PowerSSO-24 | High Side | Surface Mount | N-Channel | 2 | 150 °C | -40 °C | 42 A | 36 V | 4.5 V | General Purpose | |
STMicroelectronics VND5012AKTR-E | 1:1 | On/Off | Non-Inverting | 7.5 mm | 24-PowerBSOP | 0.295 in | 12 mOhm | Current Limiting (Fixed), Over Temperature, Over Voltage | Auto Restart | PowerSSO-24 | High Side | Surface Mount | N-Channel | 2 | 150 °C | -40 °C | 42 A | 36 V | 4.5 V | General Purpose | |
STMicroelectronics VND5012AKTR-E |
Description
General part information
VND5012 Series
Power Switch/Driver 1:1 N-Channel 42A PowerSSO-24
Documents
Technical documentation and resources
