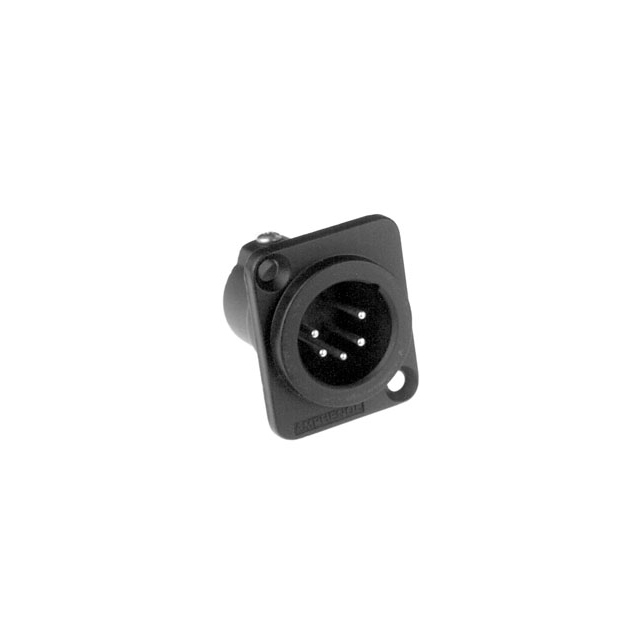

Specification	AC5MDZB BULK

Applications	Audio
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating	7.5 A
Fastening Type	Push-Pull
Ingress Protection	IP40
Insert Material	Glass Filled, Polyamide, PA66, Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	5
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Unshielded
Termination	Solder Cup

AC5M Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Color	Termination	Shielding	Primary Material	Material Flammability Rating	Insert Material	Fastening Type	Mounting Feature	Connector Type	Applications	Shell Material	Contact Finish - Mating	Orientation	Mounting Type	Ingress Protection	Shell Size - Insert	Number of Positions	Contact Material	Current Rating	Shell Finish
McGill Microwave Systems AC5MDZB BULK	-25 °C	75 °C	Black	Solder Cup	Unshielded	Metal	UL94 V-0	Glass Filled Nylon 6/6 PA66 Polyamide	Push-Pull	Flange	Male Pins Receptacle	Audio	Zinc Die Cast	Silver	Keyed	Panel Mount	IP40	XLR	5	Brass	7.5 A	Black
