QSH5718-76-28-189

Active

Analog Devices Inc./Maxim Integrated

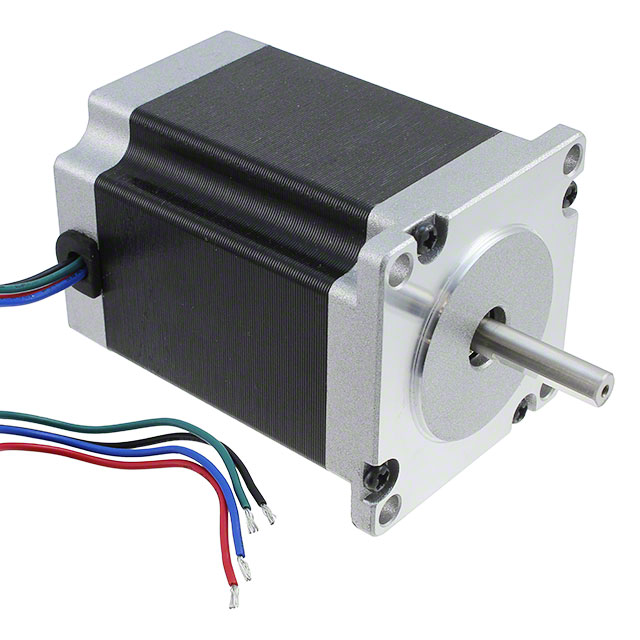

STEP MOTOR HYBRID BIPOLAR 3.2V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QSH5718-76-28-189

Active

Analog Devices Inc./Maxim Integrated

STEP MOTOR HYBRID BIPOLAR 3.2V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QSH5718-76-28-189	QSH5718 Series

Approval Agency	CE	CE
Coil Resistance	1.13 Ohms	0.7 - 900 mOhms
Coil Type	Bipolar	Bipolar
Current Rating (Amps)	2.8 A	2.8 A
Diameter - Shaft [diameter]	0.25 in	0.25 in
Diameter - Shaft [diameter]	6.35 mm	6.35 mm
Features	Flatted Shaft	Flatted Shaft
Length - Shaft and Bearing [x]	24 mm	24 mm
Length - Shaft and Bearing [x]	0.945 in	0.945 in
Mounting Hole Spacing	47.14 mm	47.14 mm
Mounting Hole Spacing	1.856 in	1.856 in
NEMA Frame Size	23	23
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-20 C	-20 C
Rotor Inertia	-	120 - 300 gcm˛
Size / Dimension [x]	56.4 mm	56.4 mm
Size / Dimension [x]	2.22 in	2.22 in
Size / Dimension [y]	56.4 mm	56.4 mm
Size / Dimension [y]	2.22 in	2.22 in
Step Angle	1.8 °	1.8 °
Steps per Revolution	200	200
Termination Style	Wire Leads	Wire Leads
Torque - Holding (oz-in / mNm)	1890 mNm	550 - 1890 mNm
Torque - Holding (oz-in / mNm)	267.64 oz-in	77.89 - 267.64 oz-in
Type	Hybrid	Hybrid
Voltage - Rated	3.2 V	2 - 3.2 V
Weight	1 kg	1 - 725.7 g
Weight	2.3 lbs	0.992 - 2.3 lbs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 94.70
		5	$ 87.03
		10	$ 83.92
		25	$ 79.98
		50	$ 77.12
		100	$ 75.73

QSH5718 Series

STEP MOTOR HYBRID BIPOLAR 2.5V

Part	Approval Agency	Step Angle	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	NEMA Frame Size	Coil Resistance	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Mounting Hole Spacing	Mounting Hole Spacing	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Voltage - Rated	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Weight	Weight	Steps per Revolution	Rotor Inertia	Coil Type	Type
Analog Devices Inc./Maxim Integrated QSH5718-56-28-126	CE	1.8 °	24 mm	0.945 in	23	900 mOhms	1260 mNm	178.43 oz-in	0.25 in	6.35 mm	47.14 mm	1.856 in	56.4 mm	56.4 mm	2.22 in	2.22 in	Flatted Shaft	2.5 V	2.8 A	50 °C	-20 C	Wire Leads	725.7 g	1.6 lbs	200	300 gcm˛	Bipolar	Hybrid
Analog Devices Inc./Maxim Integrated QSH5718-76-28-189	CE	1.8 °	24 mm	0.945 in	23	1.13 Ohms	1890 mNm	267.64 oz-in	0.25 in	6.35 mm	47.14 mm	1.856 in	56.4 mm	56.4 mm	2.22 in	2.22 in	Flatted Shaft	3.2 V	2.8 A	50 °C	-20 C	Wire Leads	1 kg	2.3 lbs	200		Bipolar	Hybrid
Analog Devices Inc./Maxim Integrated QSH5718-41-28-055	CE	1.8 °	24 mm	0.945 in	23	0.7 Ohms	550 mNm	77.89 oz-in	0.25 in	6.35 mm	47.14 mm	1.856 in	56.4 mm	56.4 mm	2.22 in	2.22 in	Flatted Shaft	2 VDC	2.8 A	50 °C	-20 C	Wire Leads	449.96 g	0.992 lb	200	120 gcm˛	Bipolar	Hybrid
Analog Devices Inc./Maxim Integrated QSH5718-76-28-189-10K	CE	1.8 °	24 mm	0.945 in	23	1.13 Ohms	1890 mNm	267.6 oz-in	0.25 in	6.35 mm	47.14 mm	1.856 in	56.4 mm	56.4 mm	2.22 in	2.22 in	Flatted Shaft	3.2 V	2.8 A	50 °C	-20 C	Wire Leads			200		Bipolar	Hybrid
Analog Devices Inc./Maxim Integrated QSH5718-51-28-101-10K	CE	1.8 °	24 mm	0.945 in	23	0.8 Ohms	1010 mNm	143.03 oz-in	0.25 in	6.35 mm	47.14 mm	1.856 in	56.4 mm	56.4 mm	2.22 in	2.22 in	Flatted Shaft	2.3 V	2.8 A	50 °C	-20 C	Wire Leads			200	275 gcm˛	Bipolar	Hybrid

Description

General part information

QSH5718 Series

Bipolar Stepper Motor Hybrid Frame Size 23 200.0 Step 2.8 A 3.2VDC
