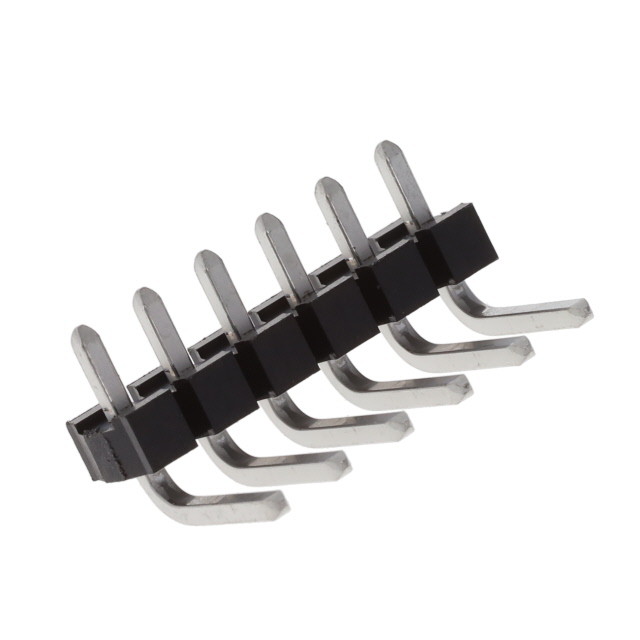

FWJ-06-02-T-S-RA

Active

Samtec Inc.

CONN HEADER R/A 6POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFWJ Series Other Related Documents 01 Datasheet +1

FWJ-06-02-T-S-RA

Active

Samtec Inc.

CONN HEADER R/A 6POS 3.96MM

Deep-Dive with AI

DocumentsFWJ Series Other Related Documents 01 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FWJ-06-02-T-S-RA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	8.13 mm
Contact Length - Mating	0.32 in
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	600 VAC, 845 VDC

FWJ-06 Series

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Voltage Rating	Number of Positions	Termination	Contact Finish - Post	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Material	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Type	Mounting Type	Contact Length - Mating	Contact Length - Mating [x]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Material	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating
Samtec Inc. FWJ-06-04-T-S	Header	105 ░C	-55 °C	Unshrouded	600 VAC 845 VDC	6	Solder	Tin	Square	27.69 mm	1.09 in	Phosphor Bronze	Black	0.156 in	3.96 mm	Male Pin	Through Hole	20.55 mm	0.809 "	All	0.156 in	3.96 mm	Push-Pull	Polybutylene Terephthalate (PBT)	0.125 in	3.18 mm	UL94 V-0	1
Samtec Inc. FWJ-06-05-T-S	Header	105 ░C	-55 °C	Unshrouded	600 VAC 845 VDC	6	Solder	Tin	Square	19.05 mm	0.75 in	Phosphor Bronze	Black			Male Pin	Through Hole	3.81 mm		All	0.156 in	3.96 mm	Push-Pull	Polybutylene Terephthalate (PBT)	0.125 in	3.18 mm	UL94 V-0	1	12.07 mm	0.475 in	0.15 in
Samtec Inc. FWJ-06-01-T-S	Header	105 ░C	-55 °C	Unshrouded	600 VAC 845 VDC	6	Solder	Tin	Square	19.05 mm	0.75 in	Phosphor Bronze	Black	0.175 in	4.45 mm	Male Pin	Through Hole	11.43 mm		All	0.156 in	3.96 mm	Push-Pull	Polybutylene Terephthalate (PBT)	0.125 in	3.18 mm	UL94 V-0	1			0.45 in
Samtec Inc. FWJ-06-02-T-S-RA	Header	105 ░C	-55 °C	Unshrouded	600 VAC 845 VDC	6	Solder	Tin	Square			Phosphor Bronze	Black	0.175 in	4.45 mm	Male Pin	Through Hole Right Angle	8.13 mm		All	0.156 in	3.96 mm	Push-Pull	Polybutylene Terephthalate (PBT)	0.25 in	6.35 mm	UL94 V-0	1			0.32 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.53
		10	$ 1.94
		100	$ 1.49
		500	$ 1.26
		1000	$ 1.17
		5000	$ 1.00
		10000	$ 0.96
