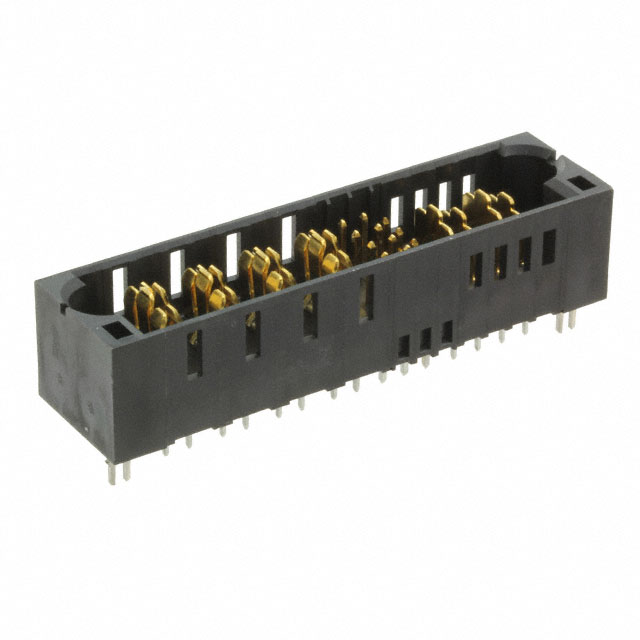

10106128-4403001LF

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 20POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 20POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10106128-4403001LF

Color	Black
Connector Style	Blade Power
Connector Type	Header, Male Pins and Blades
Contact Layout, Typical [custom]	8
Contact Layout, Typical [custom]	12
Features	Board Lock, Mating Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Number of Rows	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Termination	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Connector Style	Contact Layout, Typical	Current Rating (Amps)	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]
Amphenol ICC (FCI) 10106128-8000001LF	1	Header Male Blades	Through Hole	0.25 in	6.35 mm	Solder	Board Lock Mating Guide	125 °C	-40 °C	8	UL94 V-0	All	Blade Power	8 Power	58 A	Black	0.76 Ám	30 Áin	Gold
Amphenol ICC (FCI) 10106128-3000001LF	1	Header Male Blades	Through Hole	0.1 in	2.54 mm	Solder	Board Lock Guide Pin	125 °C	-40 °C		UL94 V-0	All	Blade Power	3 Power		Black	0.76 Ám	30 Áin	Gold or Gold GXT™
Amphenol ICC (FCI) 10106128-4403001LF		Header Male Pins and Blades	Through Hole	0.1 in	2.54 mm	Solder	Board Lock Mating Guide	125 °C	-40 °C	20	UL94 V-0	All	Blade Power			Black				8	12
Amphenol ICC (FCI) 10106128-C812001LF		Header Male Pins and Blades	Through Hole	0.1 in	2.54 mm	Solder	Board Lock Mating Guide	125 °C	-40 °C	68	UL94 V-0	All	Blade Power			Black	0.76 Ám	30 Áin	Gold or Gold GXT™	20	48

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	4752	$ 12.21
