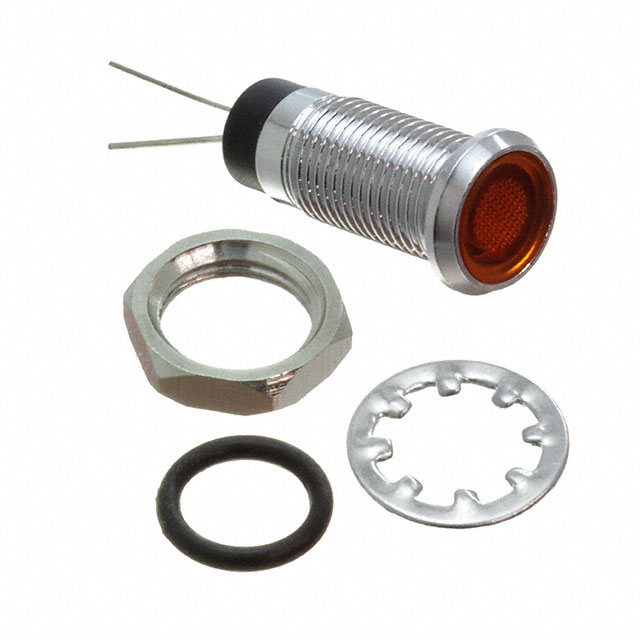

FL1M-8FJ-2-Y2V
ActiveMallory Sonalert Products Inc.
LED YEL 8MM NUT 2VAC/DC UL STK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FL1M-8FJ-2-Y2V | FL1M-8 Series |
|---|---|---|
| Ingress Protection | IP65 | IP65 |
| Lamp Color | Yellow | Blue, Yellow, Green, Red |
| Lens Color | Yellow | Blue, Yellow, Green, Red |
| Lens Size | T-3 1/8 | T-3 1/8 |
| Lens Size | 10 mm | 10 mm |
| Lens Style | - | Round with Domed Top |
| Millicandela Rating [Max] | 1500 mcd | 1500 - 10000 mcd |
| Millicandela Rating [Min] | 1000 mcd | 1000 - 8000 mcd |
| Panel Cutout Dimensions | 0.31 " | 0.31 - 0.315 in |
| Panel Cutout Dimensions | 8 mm | 8 mm |
| Panel Cutout Shape | Round | Round |
| Ratings | AC/DC | AC/DC, DC |
| Termination Style | PC Pin | Wire Leads, Wire Leads - 7.3" (185.42mm), PC Pin |
| Type | LED | LED |
| Viewing Angle | 150 ° | 35 - 150 ° |
| Voltage | 2 V | 2 - 24 V |
FL1M-8 Series
LED BLU 8MM NUT 3VAC/DC STK $
| Part | Panel Cutout Shape | Viewing Angle | Lens Color | Termination Style | Lens Size | Lens Size | Ingress Protection | Ratings | Panel Cutout Dimensions | Panel Cutout Dimensions | Voltage | Type | Millicandela Rating [Max] | Millicandela Rating [Min] | Lamp Color | Lens Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mallory Sonalert Products Inc. FL1M-8FW-1-B3V | Round | 150 ° | Blue | Wire Leads | T-3 1/8 | 10 mm | IP65 | AC/DC | 8 mm | 0.315 in | 3 V | LED | 3000 mcd | 2000 mcd | Blue | |
Mallory Sonalert Products Inc. FL1M-8CW-4-Y6V | Round | 35 ° | Yellow | Wire Leads - 7.3" (185.42mm) | IP65 | DC | 8 mm | 0.315 in | 6 V | LED | 1500 mcd | 1000 mcd | Yellow | |||
Mallory Sonalert Products Inc. FL1M-8FJ-2-G5V | Round | 150 ° | Green | PC Pin | T-3 1/8 | 10 mm | IP65 | AC/DC | 8 mm | 0.315 in | 5 V | LED | 10000 mcd | 8000 mcd | Green | |
Mallory Sonalert Products Inc. FL1M-8FW-1-G12V | Round | 150 ° | Green | Wire Leads - 7.3" (185.42mm) | T-3 1/8 | 10 mm | IP65 | AC/DC | 8 mm | 0.31 " | 12 V | LED | 10000 mcd | 8000 mcd | Green | |
Mallory Sonalert Products Inc. FL1M-8FJ-2-Y2V | Round | 150 ° | Yellow | PC Pin | T-3 1/8 | 10 mm | IP65 | AC/DC | 8 mm | 0.31 " | 2 V | LED | 1500 mcd | 1000 mcd | Yellow | |
Mallory Sonalert Products Inc. FL1M-8SW-1-G24V | Round | 150 ° | Green | Wire Leads - 7.3" (185.42mm) | IP65 | DC | 8 mm | 0.31 " | 24 V | LED | 10000 mcd | 8000 mcd | Green | Round with Domed Top | ||
Mallory Sonalert Products Inc. FL1M-8CJ-3-R2V | Round | 35 ° | Red | PC Pin | IP65 | AC/DC | 8 mm | 0.31 " | 2 V | LED | 1500 mcd | 1000 mcd | Red | Round with Domed Top | ||
Mallory Sonalert Products Inc. FL1M-8FW-1-G3V | Round | 150 ° | Green | Wire Leads - 7.3" (185.42mm) | T-3 1/8 | 10 mm | IP65 | AC/DC | 8 mm | 0.31 " | 3 V | LED | 10000 mcd | 8000 mcd | Green | |
Mallory Sonalert Products Inc. FL1M-8CW-4-G6V | Round | 60 ° | Green | Wire Leads - 7.3" (185.42mm) | IP65 | DC | 8 mm | 0.315 in | 6 V | LED | 10000 mcd | 8000 mcd | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.85 | |
Description
General part information
FL1M-8 Series
LED Panel Indicator Yellow 150° 2V 20mA PC Pin
