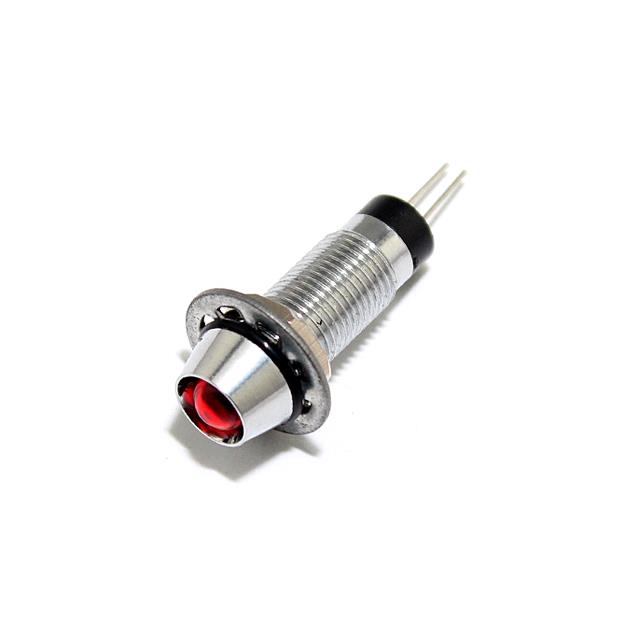

FL1M-8CJ-3-R2V

Active

Mallory Sonalert Products Inc.

LED RED 8MM NUT 2VDC STK

Search across all available documentation for this part.

Active

Mallory Sonalert Products Inc.

LED RED 8MM NUT 2VDC STK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	35	$ 2.69

General part information

LED Panel Indicator Red 35° 2V 20mA PC Pin

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	FL1M-8CJ-3-R2V	FL1M-8 Series

Ingress Protection	IP65	IP65
Lamp Color	Red	Blue, Yellow, Green, Red
Lens Color	Red	Blue, Yellow, Green, Red
Lens Size	-	T-3 1/8
Lens Size	-	10 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating [Max]	1500 mcd	1500 - 10000 mcd
Millicandela Rating [Min]	1000 mcd	1000 - 8000 mcd
Panel Cutout Dimensions	0.31 "	0.31 - 0.315 in
Panel Cutout Dimensions	8 mm	8 mm
Panel Cutout Shape	Round	Round
Ratings	AC/DC	AC/DC, DC
Termination Style	PC Pin	Wire Leads, Wire Leads - 7.3" (185.42mm), PC Pin
Type	LED	LED
Viewing Angle	35 °	35 - 150 °
Voltage	2 V	2 - 24 V

LED BLU 8MM NUT 3VAC/DC STK $

Part	Panel Cutout Shape	Viewing Angle	Lens Color	Termination Style	Lens Size	Lens Size	Ingress Protection	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Type	Millicandela Rating [Max]	Millicandela Rating [Min]	Lamp Color	Lens Style
Mallory Sonalert Products Inc. FL1M-8FW-1-B3V	Round	150 °	Blue	Wire Leads	T-3 1/8	10 mm	IP65	AC/DC	8 mm	0.315 in	3 V	LED	3000 mcd	2000 mcd	Blue
Mallory Sonalert Products Inc. FL1M-8CW-4-Y6V	Round	35 °	Yellow	Wire Leads - 7.3" (185.42mm)			IP65	DC	8 mm	0.315 in	6 V	LED	1500 mcd	1000 mcd	Yellow
Mallory Sonalert Products Inc. FL1M-8FJ-2-G5V	Round	150 °	Green	PC Pin	T-3 1/8	10 mm	IP65	AC/DC	8 mm	0.315 in	5 V	LED	10000 mcd	8000 mcd	Green
Mallory Sonalert Products Inc. FL1M-8FW-1-G12V	Round	150 °	Green	Wire Leads - 7.3" (185.42mm)	T-3 1/8	10 mm	IP65	AC/DC	8 mm	0.31 "	12 V	LED	10000 mcd	8000 mcd	Green
Mallory Sonalert Products Inc. FL1M-8FJ-2-Y2V	Round	150 °	Yellow	PC Pin	T-3 1/8	10 mm	IP65	AC/DC	8 mm	0.31 "	2 V	LED	1500 mcd	1000 mcd	Yellow
Mallory Sonalert Products Inc. FL1M-8SW-1-G24V	Round	150 °	Green	Wire Leads - 7.3" (185.42mm)			IP65	DC	8 mm	0.31 "	24 V	LED	10000 mcd	8000 mcd	Green	Round with Domed Top
Mallory Sonalert Products Inc. FL1M-8CJ-3-R2V	Round	35 °	Red	PC Pin			IP65	AC/DC	8 mm	0.31 "	2 V	LED	1500 mcd	1000 mcd	Red	Round with Domed Top
Mallory Sonalert Products Inc. FL1M-8FW-1-G3V	Round	150 °	Green	Wire Leads - 7.3" (185.42mm)	T-3 1/8	10 mm	IP65	AC/DC	8 mm	0.31 "	3 V	LED	10000 mcd	8000 mcd	Green
Mallory Sonalert Products Inc. FL1M-8CW-4-G6V	Round	60 °	Green	Wire Leads - 7.3" (185.42mm)			IP65	DC	8 mm	0.315 in	6 V	LED	10000 mcd	8000 mcd	Green
