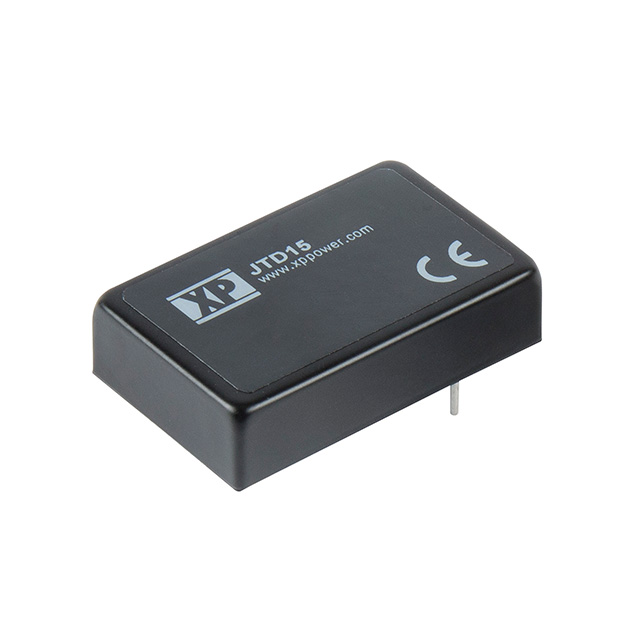

JTD1548S12
ActiveXP POWER
DC DC CONVERTER 12V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JTD1548S12
ActiveXP POWER
DC DC CONVERTER 12V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JTD1548S12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.25 A |
| Efficiency | 85 % |
| Features | OVP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 40.6 mm |
| Size / Dimension [x] | 1.6 " |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 10.4 mm |
| Size / Dimension [z] | 0.41 " |
| Standard Number | 62368-1 |
| Supplier Device Package | 6-DIP |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 30.80 | |
| 5 | $ 29.88 | |||
| 10 | $ 28.95 | |||
| 25 | $ 27.72 | |||
| 100 | $ 25.87 | |||
Description
General part information
JTD1548 Series
Isolated Module DC DC Converter 1 Output 12V 1.25A 18V - 75V Input
