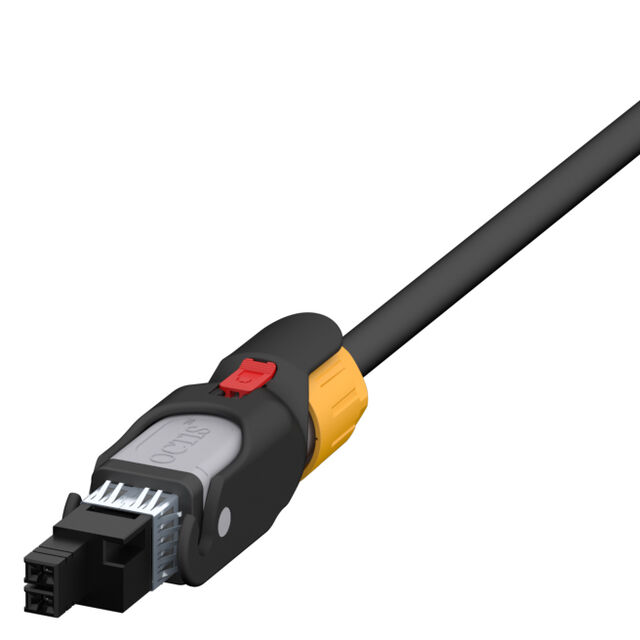

10143762-102LF

Active

Amphenol ICC (FCI)

OCTIS PLUG KIT 3P

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

OCTIS PLUG KIT 3P

Technical Specifications

Parameters and characteristics for this part

Specification	10143762-102LF

Color	Black
Connector Style	Power
Connector Type	Plug, Male Blades
Contact Layout, Typical	3 Power
Current Rating (Amps)	20 A
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	1.024 in
Pitch [x]	26 mm
Termination	Crimp
Voltage Rating	500 VAC

Part	Number of Rows	Connector Type	Mounting Type	Termination	Color	Voltage Rating	Contact Layout, Typical	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Material Flammability Rating	Current Rating (Amps)	Number of Positions Loaded	Number of Columns	Number of Positions
Amphenol ICC (FCI) 10143762-102LF	2	Plug Male Blades	Free Hanging (In-Line)	Crimp	Black	500 VAC	3 Power	1.024 in	26 mm	105 ░C	-55 °C	Power	UL94 V-0	20 A	All
Amphenol ICC (FCI) 10143762-101LF	2	Header Male Blades	Free Hanging (In-Line)	Crimp	Black		4 Power	1.024 in	26 mm	85 °C	-55 °C	Power		20 A	All	2	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Connector Plug, Male Blades Free Hanging (In-Line) Black Power
