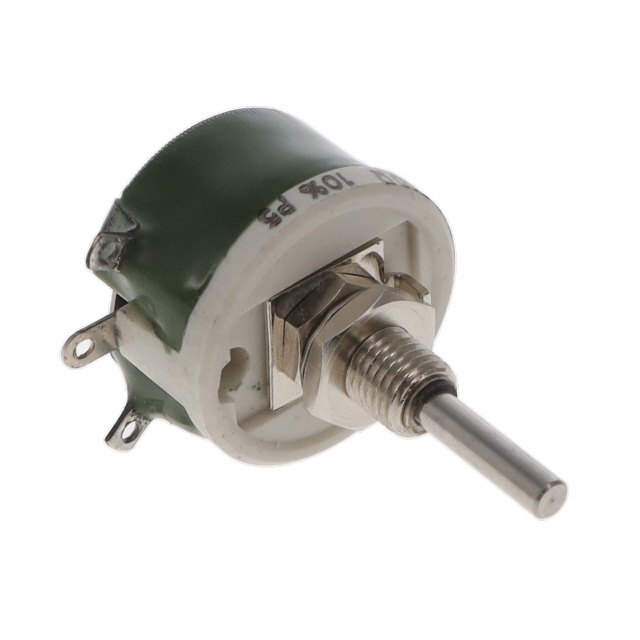

RT012B700AS5000KB

Active

Vishay Sfernice

POT 500 OHM 12W WIREWOUND LIN

Search across all available documentation for this part.

Active

Vishay Sfernice

POT 500 OHM 12W WIREWOUND LIN

Technical Specifications

Parameters and characteristics for this part

POT 500 OHM 12W WIREWOUND LIN

Part	Power (Watts)	Built in Switch	Tolerance	Actuator Length [z]	Actuator Length [z]	Size - Body	Size - Body [diameter]	Size - Body [diameter]	Adjustment Type	Rotation	Termination Style	Taper	Bushing Thread	Number of Turns	Resistive Material	Number of Gangs	Actuator Type	Resistance (Ohms)
Vishay Sfernice RT012B700AS5000KB	12 W		10 %	0.866 in	22 mm	Round	22.5 mm	0.886 in	User Defined	290 °	Solder Lug	Linear	M6 x 0.75	1	Wirewound	1	Round	500 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 218.24

General part information

500 Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Wirewound 12W Solder Lug
