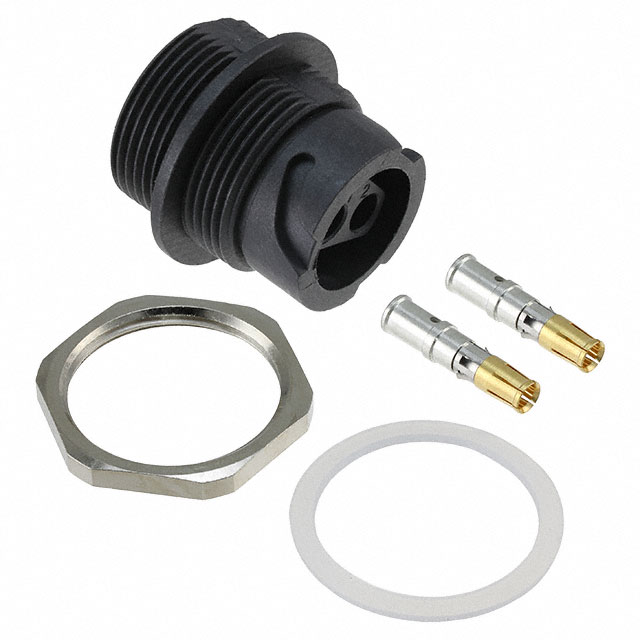

17-400133

Active

Amphenol CONEC

CONN RCPT FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN RCPT FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	17-400133

Applications	Telecommunications, Automation Control, Industrial
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	30 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Crimp
Voltage Rating	48 VAC

Part	Connector Type	Applications	Termination	Contact Finish - Mating	Primary Material	Backshell Material, Plating	Shell Material	Current Rating (Amps)	Shielding	Ingress Protection	Contact Finish Thickness - Mating	Voltage Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Contact Material	Insert Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Orientation	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Mounting Type	Mounting Feature	Number of Positions
Amphenol CONEC 17-400183	Male Pins Plug	Automation Control Industrial Telecommunications	Crimp	Gold	Plastic	Glass Filled Nylon Polyamide (PA)	Glass Filled Nylon Polyamide (PA)	20 A	Unshielded	IP67 - Dust Tight Waterproof	Flash	250 VAC	3	1	2	UL94 V-0	Copper Alloy	Polyamide (PA) Nylon Glass Filled	13 mm	0.709 in	0.512 in	18 mm	Keyed	Bayonet Lock	100 °C	-40 °C	Black	Free Hanging (In-Line)
Amphenol CONEC 17-400133	Receptacle Female Sockets	Automation Control Industrial Telecommunications	Crimp	Gold	Plastic		Glass Filled Nylon Polyamide (PA)	30 A	Unshielded	IP67 - Dust Tight Waterproof	Flash	48 VAC				UL94 V-0	Copper Alloy	Polyamide (PA) Nylon Glass Filled					Keyed	Bayonet Lock	100 °C	-40 °C	Black		Bulkhead - Front or Rear Side Nut	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position Circular Connector Receptacle, Female Sockets Crimp
