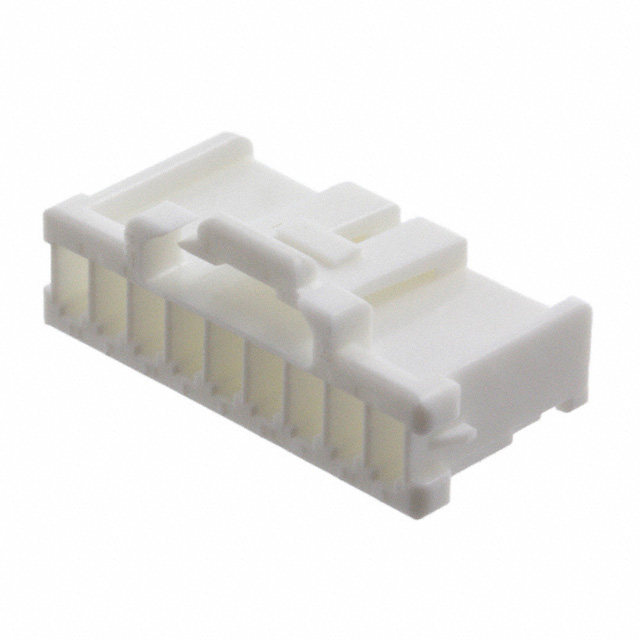

PNIRP-09V-S

Active

JST Sales America Inc.

CONN SOCKET HSG 9POS 2.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN SOCKET HSG 9POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	PNIRP-09V-S

Color	Natural
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

Part	Connector Type	Note	Fastening Type	Mounting Type	Number of Positions	Color	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Contact Termination	Pitch [x]	Pitch [x]
JST Sales America Inc. PNIRP-09V-S	Socket	Contacts Not Included	Latch Holder	Free Hanging (In-Line)	9	Natural	Polybutylene Terephthalate (PBT) Glass Filled	-25 °C	85 °C	Female Socket	1	Crimp	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.10

General part information

9 Rectangular Connectors - Housings Socket Natural 0.079" (2.00mm)
