74LVC16373APAG8

Active

Renesas Electronics Corporation

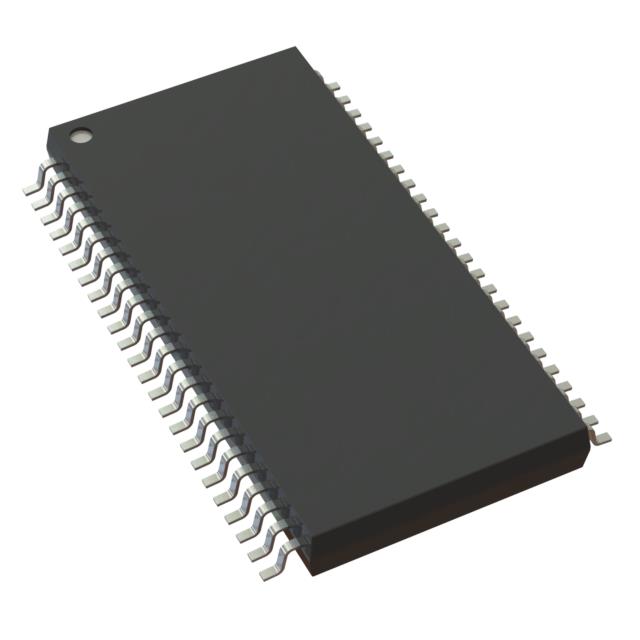

3.3V CMOS 16-BIT TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS, 5.0V TOLERANT I/O

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 74LVC16373A Datasheet

74LVC16373APAG8

Active

Renesas Electronics Corporation

3.3V CMOS 16-BIT TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS, 5.0V TOLERANT I/O

Deep-Dive with AI

DocumentsDatasheet 74LVC16373A Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	74LVC16373APAG8	74LVC16373A Series

Circuit [custom]	8	8
Circuit [custom]	8	8
Current - Output High, Low	24 mA	24 mA
Delay Time - Propagation	2.1 ns	2.1 ns
Independent Circuits	2	2
Logic Type	D-Type Transparent Latch	D-Type Transparent Latch
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Tri-State	Tri-State
Package / Case	48-TFSOP	48-BSSOP, 48-TFSOP
Package / Case	0.24 in	0.24 in
Package / Case	-	0.295 in
Package / Case	-	7.5 mm
Package / Case [custom]	6.1 mm	6.1 mm
Supplier Device Package	48-TSSOP	48-SSOP, 48-TSSOP
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.65 V	1.65 V

74LVC16373A Series

3.3V CMOS 16-Bit Transparent D-Type Latch with 3-State Outputs, 5.0V Tolerant I/O

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [y]	Package / Case	Package / Case [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Circuit [custom]	Circuit [custom]	Current - Output High, Low	Logic Type	Output Type	Delay Time - Propagation	Mounting Type	Independent Circuits	Package / Case	Package / Case [custom]
Renesas Electronics Corporation 74LVC16373APVG	85 °C	-40 °C	0.295 in	48-BSSOP	7.5 mm	1.65 V	3.6 V	48-SSOP	8	8	24 mA	D-Type Transparent Latch	Tri-State	2.1 ns	Surface Mount	2
Renesas Electronics Corporation 74LVC16373APAG8	85 °C	-40 °C		48-TFSOP		1.65 V	3.6 V	48-TSSOP	8	8	24 mA	D-Type Transparent Latch	Tri-State	2.1 ns	Surface Mount	2	0.24 in	6.1 mm
Renesas Electronics Corporation 74LVC16373APAG	85 °C	-40 °C		48-TFSOP		1.65 V	3.6 V	48-TSSOP	8	8	24 mA	D-Type Transparent Latch	Tri-State	2.1 ns	Surface Mount	2	0.24 in	6.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

74LVC16373A Series

The 74LVC16373A 16-bit high-speed, low-power transparent D-type latch is ideal for temporary storage of data. It can be used for implementing memory address latches, I/O ports, and bus drivers and can operate as two 8- bit latches or one 16-bit latch. All pins of the 74LVC16373A can be driven from either 3.3V or 5V devices which allows the use of this device as a translator in a mixed 3.3V/ 5V supply system. The 74LVC16373A operates at -40C to +85C
