FFR.3Y.425.CFAE55G

Active

LEMO

CONN CIRC PLUG SLDR 3Y

Search across all available documentation for this part.

Active

LEMO

CONN CIRC PLUG SLDR 3Y

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

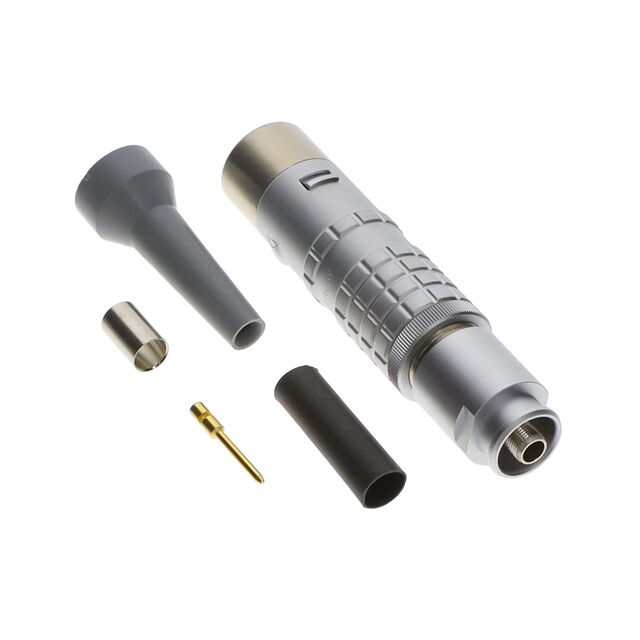

1 Position Circular Connector Plug, Male Pins Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FFR.3Y.425.CFAE55G	FFR.3Y Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	-	59 Áin
Contact Finish Thickness - Mating	-	1.5 Ám
Contact Material	Brass	Brass
Current Rating (Amps)	8 A	8 A
Fastening Type	Push-Pull	Push-Pull
Features	Strain Relief, Backshell	Strain Relief, Backshell
Ingress Protection	IP50	IP50
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	1	1
Operating Temperature [Max]	230 °C	230 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	R	R
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	425	425
Shielding	Unshielded	Unshielded

CONN PLUG MALE 1P GOLD SLDR CUP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Mating	Shell Size - Insert	Fastening Type	Ingress Protection	Mounting Type	Color	Primary Material	Number of Positions	Shell Finish	Backshell Material, Plating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shell Material	Features	Shielding	Orientation
LEMO FFR.3Y.425.CFAE55R	59 Áin	1.5 Ám	8 A	Gold	425	Push-Pull	IP50	Free Hanging (In-Line)	Silver	Metal	1	Chrome	Brass, Chrome	Brass	230 °C	-55 °C	Male Pins, Plug	Brass	Backshell, Strain Relief
LEMO FFR.3Y.425.CFAE55G			8 A	Gold	425	Push-Pull	IP50	Free Hanging (In-Line)	Silver	Metal	1	Chrome	Brass, Chrome	Brass	230 °C	-55 °C	Male Pins, Plug	Brass	Backshell, Strain Relief	Unshielded	R
