901-3143-1000

Active

Amphenol RF

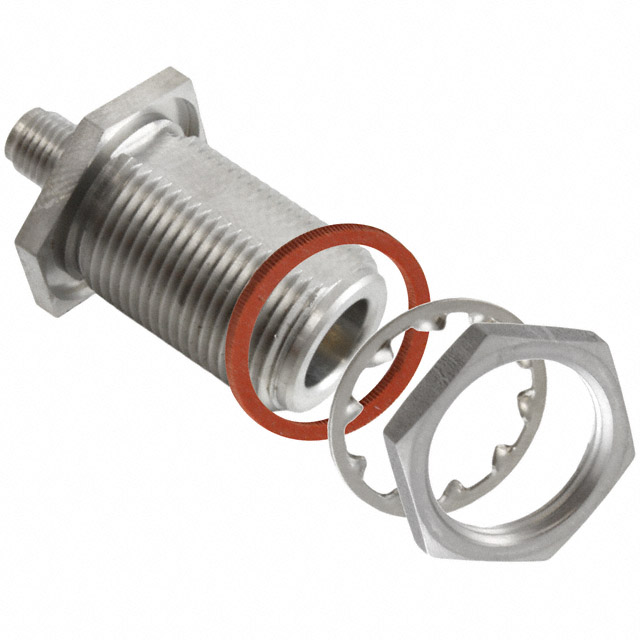

CONN ADAPT N JACK TO SMA JACK

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT N JACK TO SMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	901-3143-1000

Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Convert To (Adapter End)	Conversion Type	Center Gender	Center Contact Material	Adapter Type	Body Material	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Dielectric Material	Style	Mounting Feature	Frequency - Max [Max]	Mating Cycles	Convert From (Adapter End)	Impedance
Amphenol RF 901-3143-1000	Female Socket N Jack	Between Series	Female to Female	Beryllium Copper	Jack to Jack	Stainless Steel	1 Connector 1 Lockwasher 1 Nut	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Straight	Bulkhead	18 GHz	500	Female Socket SMA Jack	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To N Jack, Female Socket 50 Ohms
