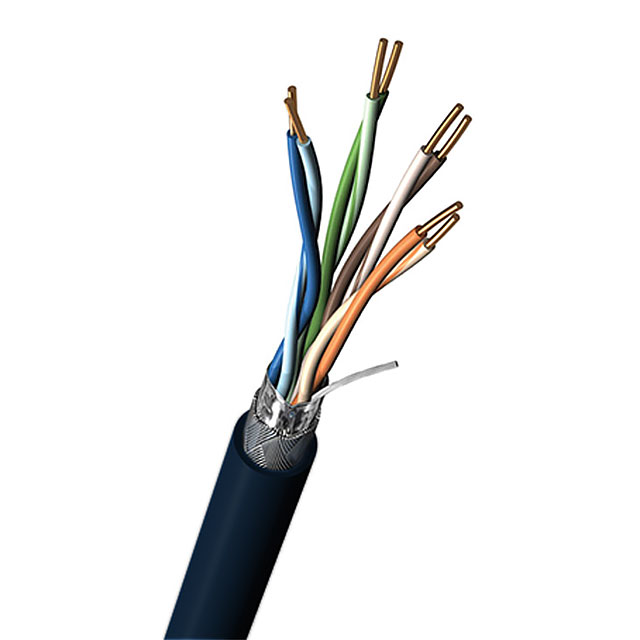

7921A 0101000

Active

Belden Inc.

SHIELDED MULTI-CONDUCTOR CABLE FOIL TAPE/BRAID POLYOLEFIN 8CONDUCTORS 24AWG 8.38MM 300VAC BLACK POLYVINYL CHLORIDE 304.8M REEL

Search across all available documentation for this part.

Active

Belden Inc.

SHIELDED MULTI-CONDUCTOR CABLE FOIL TAPE/BRAID POLYOLEFIN 8CONDUCTORS 24AWG 8.38MM 300VAC BLACK POLYVINYL CHLORIDE 304.8M REEL

Technical Specifications

Parameters and characteristics for this part

Specification	7921A 0101000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Oil Resistant, UV Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.33 in
Jacket (Insulation) Diameter [diameter]	8.38 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	70 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Network
Wire Gauge	24 AWG

Part	Ratings	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Conductor Strand	Voltage	Number of Conductors	Shield Material	Jacket Color	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Features	Shield Type	Conductor Material	Conductor Insulation	Cable Type	Jacket (Insulation) Material
Belden Inc. 7921A 1NH1000	UL Style CMR	24 AWG	0.33 in	8.38 mm	1000 ft	304.8 m	Solid	300 V	8	Aluminum Copper Tinned	Teal	Industrial Network	0.762 mm	0.03 in	-40 °C	75 ░C	70 % 100 %	Drain Wire Oil Resistant UV Resistant	Braid Foil	Copper Bare	Polyolefin (PO)	Multi-Pair Cat5e	Poly-Vinyl Chloride (PVC)
Belden Inc. 7921A 0021000	UL Style CMR	24 AWG	0.33 in	8.38 mm	1000 ft	304.8 m	Solid	300 V	8	Aluminum Copper Tinned	Red	Industrial Network	0.762 mm	0.03 in	-40 °C	75 ░C	70 % 100 %	Drain Wire Oil Resistant UV Resistant	Braid Foil	Copper Bare	Polyolefin (PO)	Multi-Pair Cat5e	Poly-Vinyl Chloride (PVC)
Belden Inc. 7921A 0101000		24 AWG	0.33 in	8.38 mm	1000 ft	304.8 m	Solid		8	Aluminum Copper Tinned	Black	Network	0.762 mm	0.03 in	-40 °C	75 ░C	70 % 100 %	Drain Wire Oil Resistant UV Resistant	Braid Foil	Copper Bare	Polyolefin (PO)	Multi-Pair Cat5e	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG Foil, Braid 1000.0' (304.8m)
