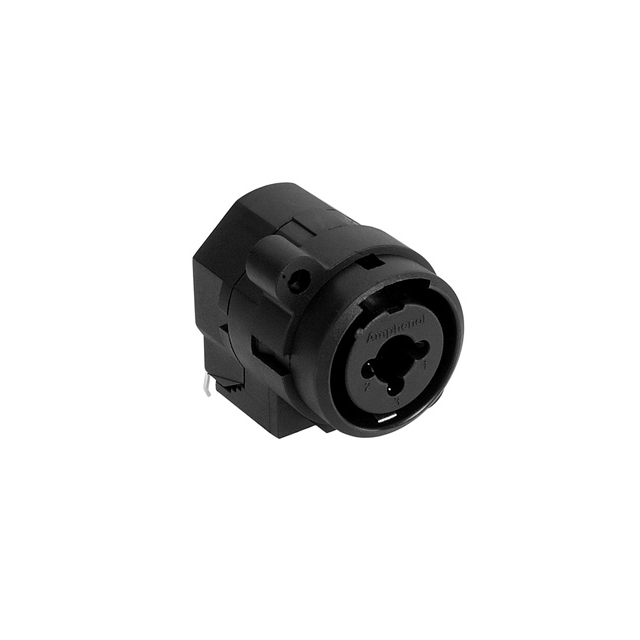

ACJC5HL BULK

Active

Amphenol Sine Systems Corp

1/4" MONO/XLR PCB 5 SKT NO LATCH

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

1/4" MONO/XLR PCB 5 SKT NO LATCH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack, Dual Mono Connector Kinked Pin, Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ACJC5HL BULK	ACJC5 Series

Body Color	Black	Black
Connector Type	Phone Jack, Dual	Phone Jack, Dual
Contact Material	Bronze, Brass	Bronze, Brass
Contact Material - Plating	Gold, Silver	Gold, Silver
Current Rating (Amps)	7.5 A	7.5 A
Features	Board Guide	Board Guide
Gender	Female	Female
Housing Material	Glass Filled, Polyamide (PA66), Nylon 6/6	Glass Filled, Polyamide (PA66), Nylon 6/6
Internal Switch(s)	False	False
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Positions/Contacts [custom]	6	6
Number of Positions/Contacts [custom]	2	2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Hole Size	0.937 "	0.937 "
Panel Hole Size	23.8 mm	23.8 mm
Shielding	Unshielded	Unshielded
Signal Lines	Mono	Mono
Termination	Kinked Pin, Solder	Kinked Pin, Solder, Solder

1/4" MONO/XLR PCB VERT 5 SKT NO

Part	Contact Material - Plating	Current Rating (Amps)	Shielding	Body Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Panel Hole Size	Panel Hole Size	Contact Material	Gender	Signal Lines	Features	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Housing Material
Amphenol Sine Systems Corp ACJC5VL BULK	Gold, Silver	7.5 A	Unshielded	Black	6	2	Kinked Pin, Solder	0.937 "	23.8 mm	Brass, Bronze	Female	Mono	Board Guide	70 °C	-25 °C	Dual, Phone Jack	Panel Mount, Through Hole	Glass Filled, Nylon 6/6, Polyamide (PA66)
Amphenol Sine Systems Corp ACJC5S BULK	Gold, Silver	7.5 A	Unshielded	Black	6	2	Solder	0.937 "	23.8 mm	Brass, Bronze	Female	Mono	Board Guide	70 °C	-25 °C	Dual, Phone Jack	Panel Mount, Through Hole	Glass Filled, Nylon 6/6, Polyamide (PA66)
Amphenol Sine Systems Corp ACJC5SL BULK	Gold, Silver	7.5 A	Unshielded	Black	6	2	Solder	0.937 "	23.8 mm	Brass, Bronze	Female	Mono	Board Guide	70 °C	-25 °C	Dual, Phone Jack	Panel Mount, Through Hole	Glass Filled, Nylon 6/6, Polyamide (PA66)
Amphenol Sine Systems Corp ACJC5HL BULK	Gold, Silver	7.5 A	Unshielded	Black	6	2	Kinked Pin, Solder	0.937 "	23.8 mm	Brass, Bronze	Female	Mono	Board Guide	70 °C	-25 °C	Dual, Phone Jack	Panel Mount, Right Angle, Through Hole	Glass Filled, Nylon 6/6, Polyamide (PA66)
