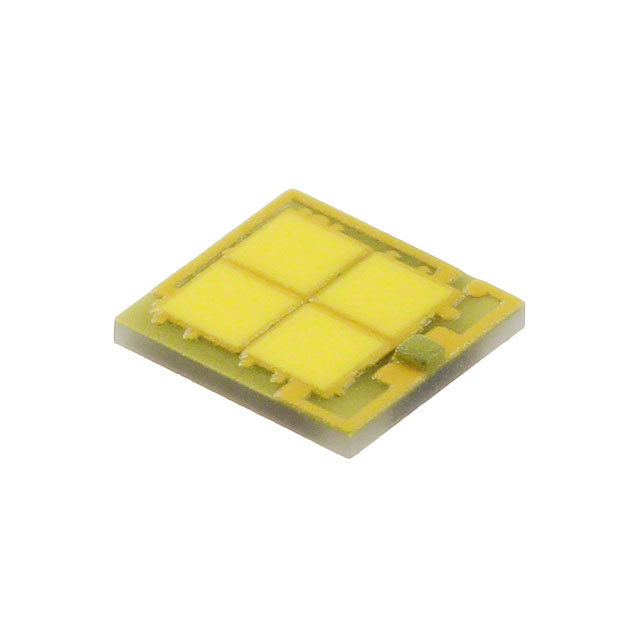

LMZ8-QW27
ActiveLumileds
LED LUXEON WARM WHITE 2700K 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
LMZ8-QW27
ActiveLumileds
LED LUXEON WARM WHITE 2700K 2SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LMZ8-QW27 |
|---|---|
| CCT (K) | 2700 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 4.8 A |
| Current - Test | 2.8 A |
| Flux @ 85°C, Current - Test | 760 lm |
| Height - Seated (Max) [Max] [z] | 0.84 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Lumens/Watt @ Current - Test | 97 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1716 |
| Package / Case | 4240 |
| Thermal Resistance of Package [custom] | 1.25 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.72 | |
| 10 | $ 7.45 | |||
| 100 | $ 6.13 | |||
| Digi-Reel® | 1 | $ 9.49 | ||
| 10 | $ 6.89 | |||
| 100 | $ 5.56 | |||
| Tape & Reel (TR) | 3000 | $ 4.98 | ||
Description
General part information
LMZ8 Series
LED Lighting LUXEON MZ White, Warm 2700K 2.8V 2.8A 120° 1716 (4240 Metric)
