1825006-1

Active

TE Connectivity Raychem Cable Protection

SWITCH STANDARD DIP SPST

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1825006-1

Actuator Level	Flush, Recessed
Actuator Type	Standard
Circuit	SPST
Mounting Type	Through Hole
Number of Positions	2
Washable	True

ALCOSWITCH DIP Series

Part	Length	Length	Height Above Board	Height Above Board	Body Material	Contact Material	Voltage Rating	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Circuit	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Level	Termination Style	Actuator Type	Mechanical Life	Length [x]	Length [x]	Features	Height Above Board [z]	Height Above Board [z]	Current Rating (Amps)	Number of Positions
TE Connectivity Raychem Cable Protection 3-1825033-1	10 mm	0.394 in	0.386 in	9.8 mm	Polyphenylene Sulfide (PPS)	Copper Alloy	20 VAC/DC	0.1 in	Full	2.54 mm	Gold	Hexadecimal	16	Through Hole	-30 ░C	85 °C	20000 Steps	Raised	PC Pin	Rotary with Knob	20000 Cycles
TE Connectivity Raychem Cable Protection 1-1825006-1					Polyphenylene Sulfide (PPS)	Copper Alloy	24 VDC	0.1 in	Full	2.54 mm	Gold	SPST		Surface Mount	-30 ░C	85 °C	1000 Cycles	Flush Recessed	Gull Wing	Slide (Standard)	1000 Cycles	0.594 "	15.09 mm	Tape Seal	2.9 mm	0.114 "	25 mA	6
TE Connectivity Raychem Cable Protection 1825033-1	10 mm	0.394 in			Polyphenylene Sulfide (PPS)	Copper Alloy	20 VAC/DC	0.1 in	Full	2.54 mm	Gold	BCD		Through Hole	-30 ░C	85 °C	20000 Steps	Raised	PC Pin	Rotary with Shaft	20000 Cycles				13.8 mm	0.543 in		10
TE Connectivity Raychem Cable Protection 1825006-4												SPST		Surface Mount				Flush Recessed		Standard								2
TE Connectivity Raychem Cable Protection 2-1825033-1	10 mm	0.394 in	0.386 in	9.8 mm	Polyphenylene Sulfide (PPS)	Copper Alloy	20 VAC/DC	0.1 in	Full	2.54 mm	Gold	BCD		Through Hole	-30 ░C	85 °C	20000 Steps	Raised	PC Pin	Rotary with Knob	20000 Cycles							10
TE Connectivity Raychem Cable Protection 1-1825006-2												SPST		Surface Mount				Flush Recessed		Standard								6
TE Connectivity Raychem Cable Protection 1825006-8	10.01 mm				Polyphenylene Sulfide (PPS)	Copper Alloy	24 VDC	0.1 in	Full	2.54 mm	Gold Alloy	SPST		Surface Mount	-30 ░C	85 °C	1000 Cycles	Flush Recessed	Gull Wing	Slide (Standard)	1000 Cycles	0.394 in		Tape Seal	2.9 mm	0.114 "	25 mA	4
TE Connectivity Raychem Cable Protection 1-1825006-3					Polyphenylene Sulfide (PPS)	Copper Alloy	24 VDC	0.1 in	Full	2.54 mm	Gold	SPST		Through Hole	-30 ░C	85 °C	1000 Cycles	Flush Recessed	PC Pin	Slide (Standard)	1000 Cycles	0.794 in	20.17 mm	Tape Seal	2.9 mm	0.114 "	25 mA	8
TE Connectivity Raychem Cable Protection 1825006-1												SPST		Through Hole				Flush Recessed		Standard								2
TE Connectivity Raychem Cable Protection 5-1825033-1												Hexadecimal	16	Through Hole				Raised		Rotary with Shaft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	900	$ 1.80

Description

General part information

ALCOSWITCH DIP Series

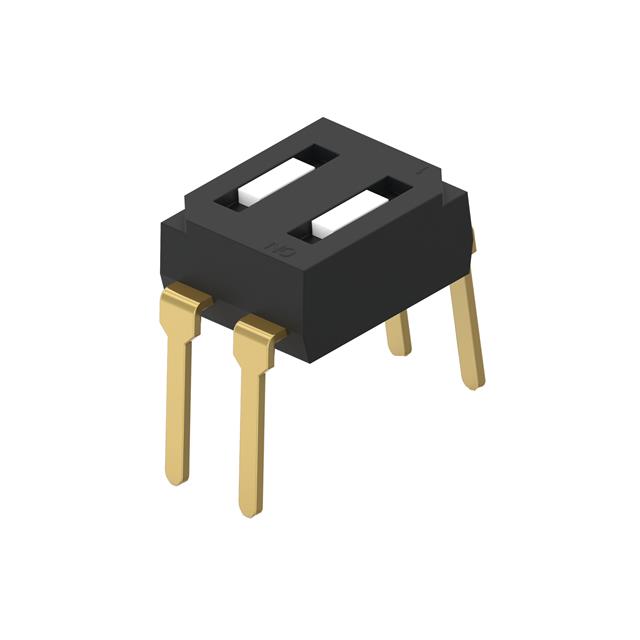

Dip Switch SPST 2 Position Through Hole Standard Actuator
