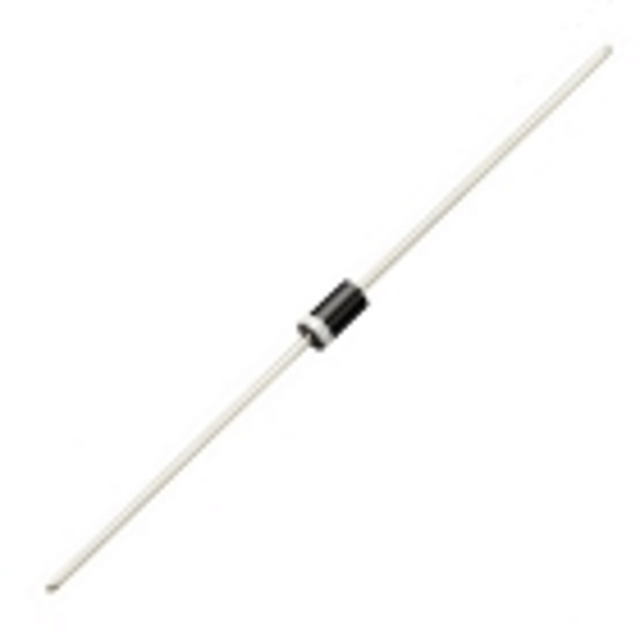

P4KE18A

Active

Rectron USA

TVS DIODE 18VWM 25.2VC DO41

Search across all available documentation for this part.

Active

Rectron USA

TVS DIODE 18VWM 25.2VC DO41

Technical Specifications

Parameters and characteristics for this part

Specification	P4KE18A

Applications	General Purpose
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	DO-204AL, DO-41, Axial
Power - Peak Pulse	400 W
Power Line Protection	False
Supplier Device Package	DO-41
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Clamping (Max) @ Ipp	25.2 V
Voltage - Reverse Standoff (Typ)	18 V

TVS DIODE 18VWM 25.2VC DO41

Part	Power Line Protection	Applications	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Package / Case	Unidirectional Channels [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Clamping (Max) @ Ipp	Power - Peak Pulse	Type
Rectron USA P4KE18A		General Purpose	DO-41	18 V	Axial, DO-204AL, DO-41	1	-55 °C	150 °C	Through Hole	25.2 V	400 W	Zener

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25.2V Clamp Ipp Tvs Diode Through Hole DO-41

Technical documentation and resources
