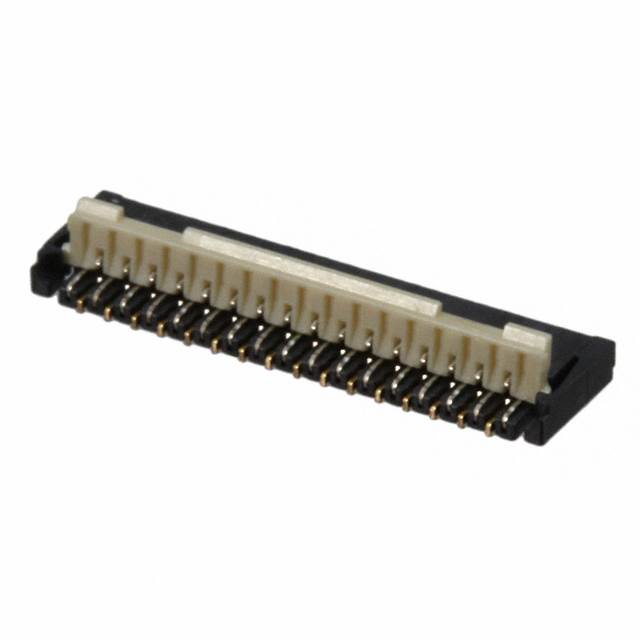

AYF333135A

Active

Panasonic Electric Works

CONN FPC 31POS 0.3MM R/A

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN FPC 31POS 0.3MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF333135A

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	200 mA
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.88 mm
Height Above Board	0.035 "
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	31
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	50 V

Part	Connector/Contact Type	Mounting Type	Contact Finish	Mating Cycles	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Locking Feature	Current Rating (Amps)	Number of Positions	Actuator Material	Contact Material	Flat Flex Type	FFC, FCB Thickness	Material Flammability Rating	Pitch [x]	Pitch [x]	Cable End Type	Height Above Board	Height Above Board	Termination	Housing Material
Panasonic Electric Works AYF333135A	Contacts Top and Bottom	Surface Mount Right Angle	Gold	20	50 V	85 °C	-55 °C	Backlock Flip Lock	200 mA	31	Liquid Crystal Polymer (LCP)	Copper Alloy	FPC	0.2 mm	UL94 V-0	0.012 in	0.3 mm	Tapered	0.88 mm	0.035 "	Solder	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

31 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
