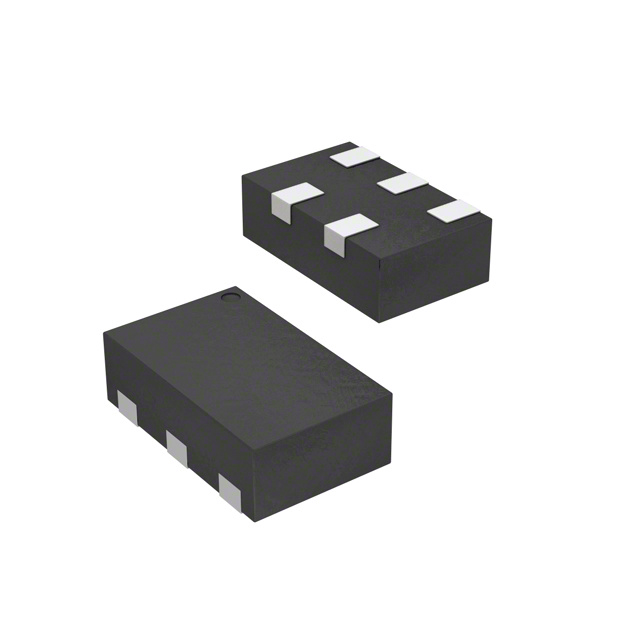

DF5G7M2N,LF

Obsolete

Toshiba Semiconductor and Storage

TVS DIODE 5.5VWM 20VC 5DFN

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

TVS DIODE 5.5VWM 20VC 5DFN

Technical Specifications

Parameters and characteristics for this part

Specification	DF5G7M2N,LF

Applications	General Purpose
Capacitance @ Frequency	0.2 pF
Current - Peak Pulse (10/1000µs)	2.5 A
Mounting Type	Surface Mount
Package / Case	5-XFDFN
Power - Peak Pulse	50 W
Power Line Protection	False
Supplier Device Package	5-DFN (1.3x0.8)
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	20 V
Voltage - Reverse Standoff (Typ)	5.5 V

Part	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Package / Case	Capacitance @ Frequency	Applications	Power Line Protection	Power - Peak Pulse	Mounting Type	Current - Peak Pulse (10/1000µs)	Type
Toshiba Semiconductor and Storage DF5G7M2N,LF	5.5 V	5-DFN (1.3x0.8)	4	20 V	6 V	5-XFDFN	0.2 pF	General Purpose		50 W	Surface Mount	2.5 A	Steering

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount 5-DFN (1.3x0.8)
