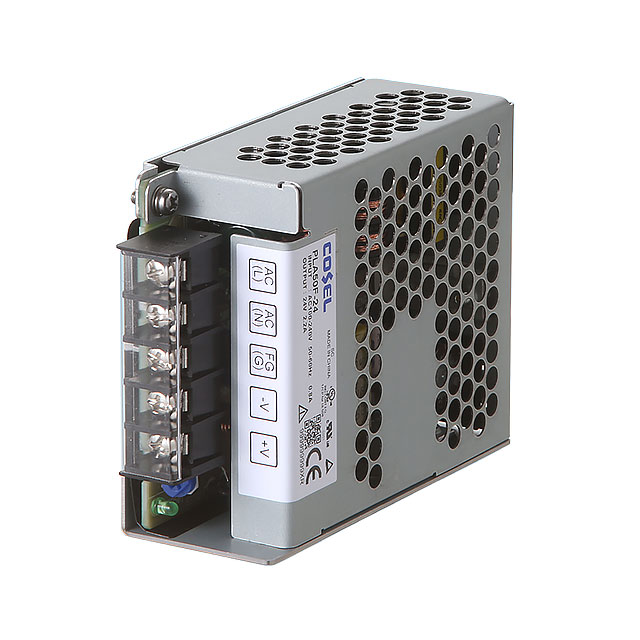

PLA50F-15
ActiveCosel USA, Inc.
AC/DC CONVERTER 15V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PLA50F-15
ActiveCosel USA, Inc.
AC/DC CONVERTER 15V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLA50F-15 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 3.5 A |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 99.1 mm |
| Size / Dimension [x] | 3.9 " |
| Size / Dimension [y] | 38.1 mm |
| Size / Dimension [y] | 1.5 in |
| Size / Dimension [z] | 80 mm |
| Size / Dimension [z] | 3.15 " |
| Type | Enclosed |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 41.00 | |
| 5 | $ 39.80 | |||
| 10 | $ 38.59 | |||
| 25 | $ 37.38 | |||
| 50 | $ 36.18 | |||
| 100 | $ 34.97 | |||
| 250 | $ 33.77 | |||
Description
General part information
PLA50F Series
Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
