XDMR09C3

Obsolete

SunLED

DISPLAY 7SEG 0.36" TRP RED 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

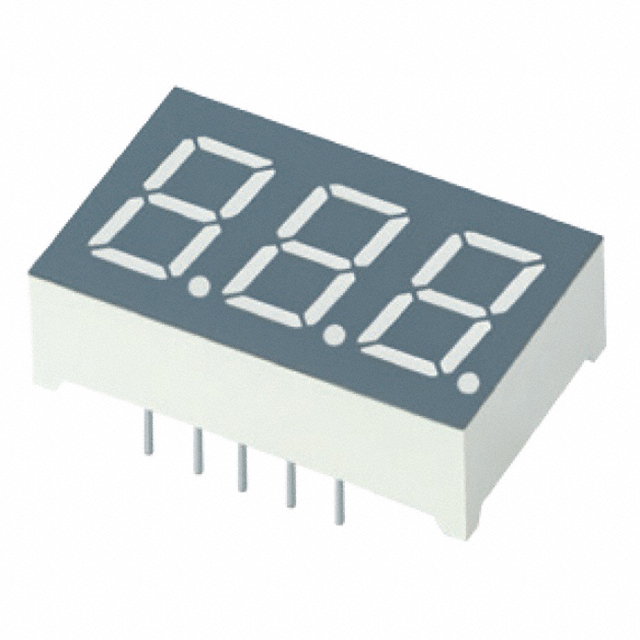

XDMR09C3

Obsolete

SunLED

DISPLAY 7SEG 0.36" TRP RED 12DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDMR09C3

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.36 in
Digit/Alpha Size	9.14 mm
Display Type	7-Segment
Millicandela Rating	5 mcd
Number of Characters	3
Package / Case	10.16 mm
Package / Case	12-DIP, 11 Leads
Package / Case	10.16 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.283 in
Size / Dimension [x]	7.2 mm
Size / Dimension [y]	22.5 mm
Size / Dimension [y]	0.886 "
Size / Dimension [z]	0.551 "
Size / Dimension [z]	14 mm
Voltage - Forward (Vf) (Typ)	1.8 V
Wavelength - Peak	655 nm

XDMR09 Series

DISPLAY 7SEG 0.36" TRP RED 12DIP

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Color	Voltage - Forward (Vf) (Typ)	Display Type	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Wavelength - Peak	Millicandela Rating	Current - Test	Common Pin	Package / Case	Package / Case	Package / Case	Power Dissipation (Max) [Max]
SunLED XDMR09C3	0.551 "	22.5 mm	0.886 "	0.283 in	14 mm	7.2 mm	Red	1.8 V	7-Segment	0.36 in	9.14 mm	3	655 nm	5 mcd	10 mA	Common Cathode	10.16 mm	11 Leads, 12-DIP	10.16 mm	75 mw

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XDMR09 Series

Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Cathode 1.8V 10mA 0.551" H x 0.886" W x 0.283" D (14.00mm x 22.50mm x 7.20mm) 12-DIP (0.400", 10.16mm), 11 Leads
