HE-016-MS

Active

TE Connectivity AMP Connectors

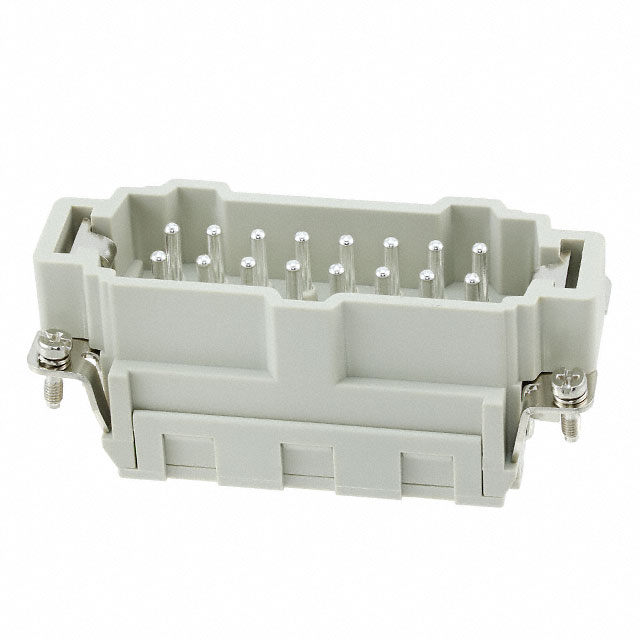

INSERT MALE 16POS CLAMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

INSERT MALE 16POS CLAMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HE-016-MS	HE-016 Series

Current Rating (Amps)	16 A	16 A
Gender	Male	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	16	16
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Termination Style	Tension Clamp	Tension Clamp, Screw
Voltage Rating	500 V	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

INSERT MALE 16POS CLAMP

Part	Gender	Voltage Rating	Material Flammability Rating	Number of Positions	Current Rating (Amps)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material
TE Connectivity AMP Connectors HE-016-MS(17-32)	Male	500 V	UL94 V-0	16	16 A	Tension Clamp	125 °C	-40 °C	Polycarbonate (PC)
TE Connectivity AMP Connectors HE-016-F	Female	500 V	UL94 V-0	16	16 A	Screw	125 °C	-40 °C	Polycarbonate (PC)
TE Connectivity AMP Connectors HE-016-F(17-32)	Female	500 V	UL94 V-0	16	16 A	Screw	125 °C	-40 °C	Polycarbonate (PC)
TE Connectivity AMP Connectors HE-016-MS	Male	500 V	UL94 V-0	16	16 A	Tension Clamp	125 °C	-40 °C	Polycarbonate (PC)

General part information

Male Insert 16 Position Tension Clamp
