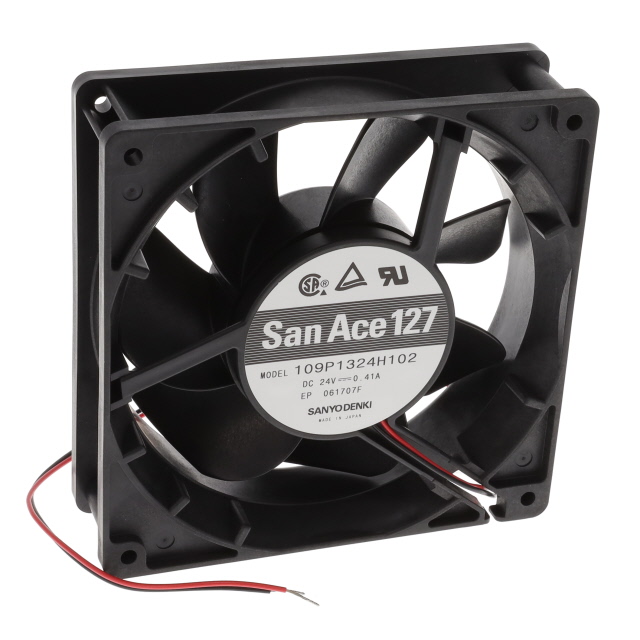

109P1324H102

Active

Sanyo Denki America Inc.

FAN AXIAL 127X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System DC Fan +2

109P1324H102

Active

Sanyo Denki America Inc.

FAN AXIAL 127X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System DC Fan +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P1324H102

Air Flow	134 CFM
Air Flow	3.75 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.41 A
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	45 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	9.84 W
RPM	2950 RPM
Size / Dimension [x]	127 mm
Size / Dimension [y]	127 mm
Static Pressure	0.394 in H2O
Static Pressure	98.1 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.772 lb
Weight	350.17 g
Width [y]	38 mm

109P1324 Series

Part	Termination	RPM	Bearing Type	Voltage - Rated	Air Flow	Air Flow	Lifetime @ Temp.	Noise	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Power (Watts)	Current Rating (Amps)	Material - Frame	Fan Type	Material - Blade	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Width [y]	Features
Sanyo Denki America Inc. 109P1324S102	2 Wire Leads	3300 RPM	Ball	24 VDC	4.14 mł/min	148 CFM	40000 Hrs	47 dB	117.6 Pa	0.472 in H2O	60 °C	-20 °C	-20 C	60 °C	0.772 lb	350.17 g	13.2 W	0.55 A	Plastic	Tubeaxial	Plastic	127 mm	127 mm	CSA TUV UL	38 mm
Sanyo Denki America Inc. 109P1324H101	3 Wire Leads	2950 RPM	Ball	24 VDC	3.75 m³/min	134 CFM	40000 Hrs	45 dB(A)	98.1 Pa	0.394 in H2O	60 °C	-20 °C	-20 C	60 °C	0.772 lb	350.17 g	9.84 W	0.41 A	Plastic	Tubeaxial	Plastic	127 mm	127 mm	CSA TUV UL	38 mm	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P1324H1021	2 Wire Leads	2950 RPM	Ball	24 VDC	3.75 m³/min	134 CFM	40000 Hrs	45 dB(A)	98.1 Pa	0.394 in H2O	60 °C	-20 °C	-20 C	60 °C	0.772 lb	350.17 g	9.84 W	0.41 A	Plastic	Tubeaxial	Plastic	127 mm	127 mm	CSA TUV UL	38 mm
Sanyo Denki America Inc. 109P1324S1011	3 Wire Leads	3300 RPM	Ball	24 VDC	4.14 mł/min	148 CFM	40000 Hrs	47 dB	117.6 Pa	0.472 in H2O	60 °C	-20 °C	-20 C	60 °C	0.772 lb	350.17 g	13.2 W	0.55 A	Plastic	Tubeaxial	Plastic	127 mm	127 mm	CSA TUV UL	38 mm	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P1324S1D01	3 Wire Leads	3300 RPM	Ball	24 VDC	4.14 mł/min	148 CFM	40000 Hrs	47 dB	117.6 Pa	0.472 in H2O	60 °C	-20 °C	-20 C	60 °C	0.772 lb	350.17 g	13.2 W	0.55 A	Plastic	Tubeaxial	Plastic	127 mm	127 mm	CSA TUV UL	38 mm	Locked Rotor Sensor
Sanyo Denki America Inc. 109P1324H102	2 Wire Leads	2950 RPM	Ball	24 VDC	3.75 m³/min	134 CFM	40000 Hrs	45 dB(A)	98.1 Pa	0.394 in H2O	60 °C	-20 °C	-20 C	60 °C	0.772 lb	350.17 g	9.84 W	0.41 A	Plastic	Tubeaxial	Plastic	127 mm	127 mm	CSA TUV UL	38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 40.15
		20	$ 34.58
		40	$ 33.41
		60	$ 32.74
		100	$ 31.91
		260	$ 30.42

Description

General part information

109P1324 Series

Fan Tubeaxial 24VDC Square - 127mm L x 127mm H Ball 134.0 CFM (3.75m³/min) 2 Wire Leads
