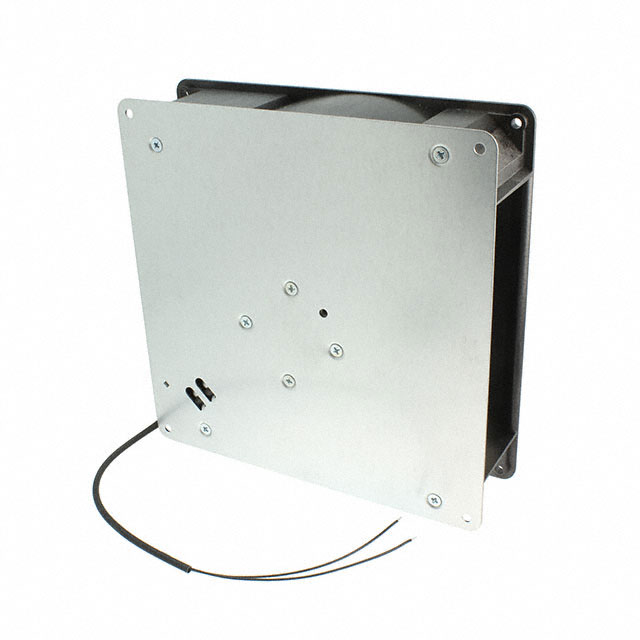

UF160DPB12-H1S2A

Active

Mechatronics Fan Group

FAN BLOWER 220X220MM 115VAC WIRE

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN BLOWER 220X220MM 115VAC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF160DPB12-H1S2A	UF160 Series

Air Flow	126 CFM	126 CFM
Air Flow	3.53 m³/min	3.53 m³/min
Bearing Type	Ball	Ball
Current Rating (Amps)	600 mA	600 mA
Fan Type	Blower	Blower
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP)
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	65 dB	65 dB
Power (Watts)	52 W	52 - 53 W
RPM	2900 RPM	2900 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	220 mm	220 mm
Size / Dimension [z]	220 mm	220 mm
Static Pressure	448.4 Pa	448.4 Pa
Static Pressure	1.8 in H2O	1.8 in H2O
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	115 VAC	115 - 230 VAC
Width [x]	56.2 mm	56.2 mm

FAN BLOWER 220X220MM 230VAC WIRE

Part	Material - Blade	Power (Watts)	Static Pressure	Static Pressure	Bearing Type	Voltage - Rated	Termination	RPM	Air Flow	Air Flow	Width [x]	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Material - Frame	Noise	Fan Type	Features	Current Rating (Amps)
Mechatronics Fan Group UF160DPB23-H1S2A	Plastic	53 W	448.4 Pa	1.8 in H2O	Ball	230 VAC	2 Wire Leads	2900 RPM	126 CFM	3.53 m³/min	56.2 mm	Square	220 mm	220 mm	Plastic	65 dB	Blower	Thermal Overload Protector (TOP)
Mechatronics Fan Group UF160DPB12-H1S2A	Plastic	52 W	448.4 Pa	1.8 in H2O	Ball	115 VAC	2 Wire Leads	2900 RPM	126 CFM	3.53 m³/min	56.2 mm	Square	220 mm	220 mm	Plastic	65 dB	Blower	Thermal Overload Protector (TOP)	600 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 115VAC Square - 220mm L x 220mm H Ball 126.0 CFM (3.53m³/min) 2 Wire Leads
