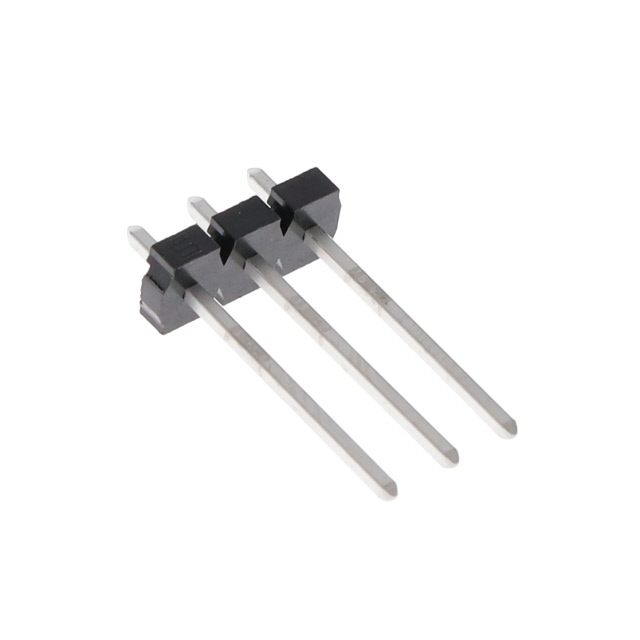

FWS-03-04-T-S - FWS-03-04-T-S

FWS-03-04-T-S

Active
Samtec Inc.

CONN HEADER VERT 3POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetFWS Datasheet+1
FWS-03-04-T-S - FWS-03-04-T-S

FWS-03-04-T-S

Active
Samtec Inc.

CONN HEADER VERT 3POS 5.08MM

Deep-Dive with AI

DocumentsDatasheetFWS Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationFWS-03-04-T-S
Connector TypeHeader
Contact Finish - PostTin
Contact Length - Mating0.83 in
Contact Length - Mating21.08 mm
Contact Length - Post0.161 in
Contact Length - Post4.09 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)11.4 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.1 in
Insulation Height2.54 mm
Insulation MaterialPolyester, Glass Filled
Mounting TypeThrough Hole
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Overall Contact Length0.769 "
Overall Contact Length19.53 mm
Pitch - Mating5.08 mm
Pitch - Mating0.2 in
ShroudingUnshrouded
TerminationSolder
Voltage Rating500 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.66
10$ 1.27
100$ 0.97
500$ 0.82
1000$ 0.76
5000$ 0.65
10000$ 0.61

Description

General part information

FWS-03 Series

Connector Header Through Hole 3 position 0.200" (5.08mm)
