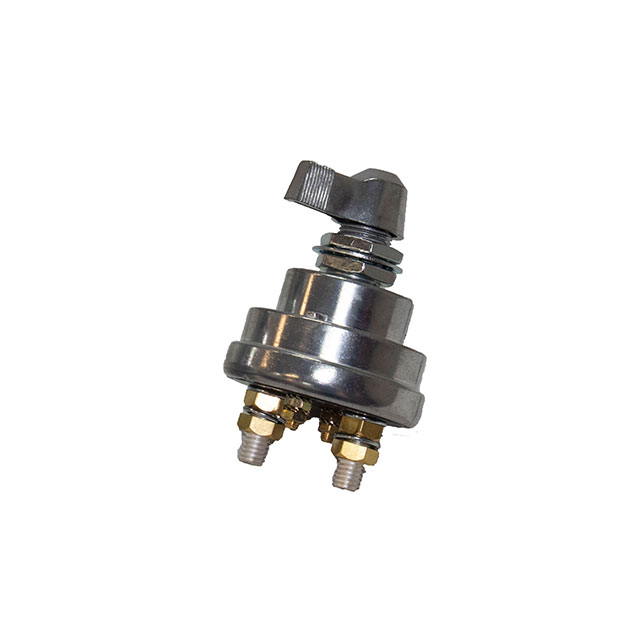

HDB3-2A-3-A

Active

Switch Components

SWITCH SELECT 2POS DPST 180A 24V

Search across all available documentation for this part.

Active

Switch Components

SWITCH SELECT 2POS DPST 180A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	HDB3-2A-3-A

Circuit	DPST
Current Rating (Amps)	180 A
Illumination	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	18.6 mm
Switch Function	On-Off
Termination Style	Stud
Type	Battery Disconnect
Voltage Rating - DC	24 V

SWITCH SELECT 2POS DPST 180A 24V

Part	Ingress Protection	Voltage Rating - DC	Circuit	Current Rating (Amps)	Illumination	Panel Cutout Dimensions [diameter]	Type	Number of Positions	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style
Switch Components HDB3-2A-3-A	IP65 - Dust Tight, Water Resistant	24 V	DPST	180 A	Non-Illuminated	18.6 mm	Battery Disconnect	2	On-Off	85 °C	-40 °C	Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 2 Position DPST 180A (DC) Panel Mount
