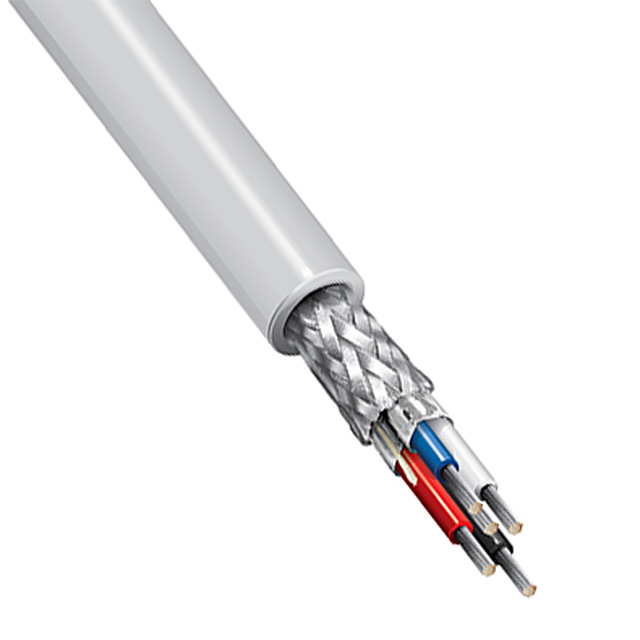

Specification	3084A T5U5000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE), Poly-Vinyl Chloride (PVC)
Conductor Material	Tinned, Copper
Conductor Strand	19/36, 19/34
Features	Drain Wire
Jacket (Insulation) Diameter	0.28 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Gray
Length	5000 ft
Number of Conductors	4
Number of Conductors - Pair	2
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Ratings	UL, 20201, Style
Shield Coverage	65%, 100%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Wire Gauge	24 AWG, 22 AWG

3084A Series

Part	Conductor Insulation	Shield Type	Jacket (Insulation) Thickness	Features	Length	Wire Gauge	Jacket Color	Jacket (Insulation) Diameter	Ratings	Conductor Material	Cable Type	Operating Temperature (Min)	Operating Temperature (Max)	Conductor Strand	Jacket (Insulation) Material	Number of Conductors - Pair	Number of Conductors	Shield Coverage	Shield Material	Length	Spool Size
Belden Inc. 3084A T5U1000	Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC)	Braid Foil	0.032 in	Drain Wire	1000 ft	22 AWG 24 AWG	Gray	0.28 in	20201 Style UL	Copper Tinned	Multi-Pair	-20 °C	75 °C	19/34 19/36	Poly-Vinyl Chloride (PVC)	2	4	100% 65%	Aluminum Copper Tinned
Belden Inc. 3084A T5U2000	Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC)	Braid Foil	0.032 in	Drain Wire		22 AWG 24 AWG	Gray	0.28 in	20201 Style UL	Copper Tinned	Multi-Pair	-20 °C	75 °C	19/34 19/36	Poly-Vinyl Chloride (PVC)	2	4	100% 65%	Aluminum Copper Tinned	Enter Number of Feet in Order Quantity	2000 ft
Belden Inc. 3084A T5U5000	Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC)	Braid Foil	0.032 in	Drain Wire	5000 ft	22 AWG 24 AWG	Gray	0.28 in	20201 Style UL	Copper Tinned	Multi-Pair	-20 °C	75 °C	19/34 19/36	Poly-Vinyl Chloride (PVC)	2	4	100% 65%	Aluminum Copper Tinned
