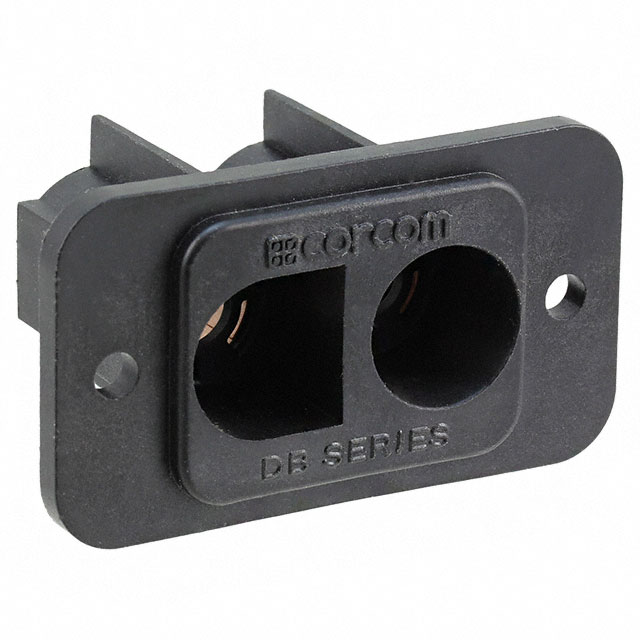

5-1609075-6

Active

TE Connectivity Corcom Filters

PWR ENT RCPT IEC320-C7 PNL WIRE

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT RCPT IEC320-C7 PNL WIRE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Pins IEC 320-C7 Panel Mount, Flange

Technical documentation and resources

Specification	5-1609075-6	1609075 Series

Accessory Type	-	Cable
Accomodates a Fuse	False	False
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Connector Style	IEC 320-C7	IEC 320-C7
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Current Rating - Appliance Inlet	60 A	60 A
Current Rating - Filter	60 A	60 A
Features	Clip	Clip
Filter Type	Filtered (EMI, RFI) - Commercial	Unfiltered - Commercial, Filtered (EMI, RFI) - Commercial
For Use With/Related Products	-	DB Series
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Number of Positions	2	2
Termination	Wire Leads	Wire Leads
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

Part	Number of Positions	Filter Type	Features	Mounting Type	Connector Style	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Connector Type	Approval Agency	Accessory Type	For Use With/Related Products	Current Rating - Filter	Termination
TE Connectivity Corcom Filters 5-1609075-7	2	Unfiltered - Commercial	Clip	Flange, Panel Mount	IEC 320-C7	60 A	120 VAC	Male Pins, Receptacle	CSA, TUV, UL
TE Connectivity Corcom Filters 5-1609075-0										Cable	DB Series
TE Connectivity Corcom Filters 6-1609075-4										Cable	DB Series
TE Connectivity Corcom Filters 5-1609075-6	2	Filtered (EMI, RFI) - Commercial	Clip	Flange, Panel Mount	IEC 320-C7	60 A	120 VAC	Male Pins, Receptacle	CSA, TUV, UL			60 A	Wire Leads
