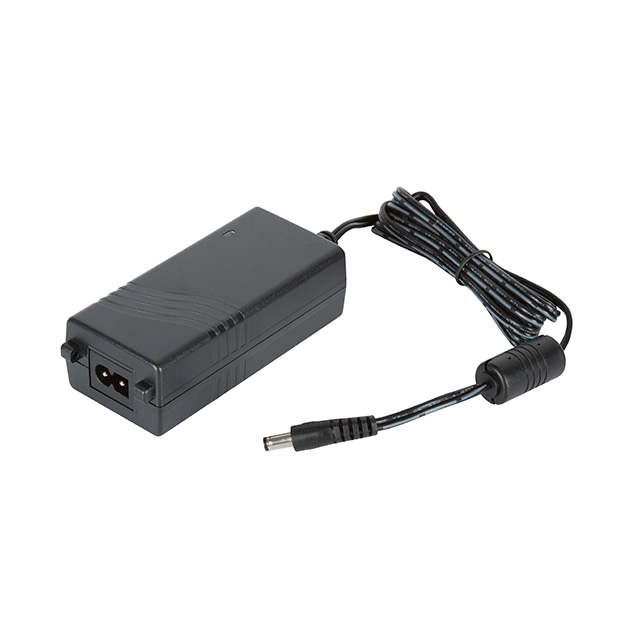

AKM36US12C2

Active

XP POWER

AC/DC DESKTOP ADAPTER 12V 36W

Search across all available documentation for this part.

Active

XP POWER

AC/DC DESKTOP ADAPTER 12V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	AKM36US12C2

Applications	ITE (Commercial), Medical
Approval Agency	CE, CSA, CB, TUV, UL
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	3 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	108 mm
Size / Dimension [x]	4.25 in
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.96 "
Size / Dimension [z]	1.33 "
Size / Dimension [z]	33.8 mm
Standard Number	60601-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V
Weight	80 g
Weight	0.176 lb

Part	Input Type	Input Connector	Current - Output (Max) [Max]	Output Connector	Output Connector [diameter]	Output Connector [x]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Standard Number	No Load Power Consumption [Max]	Voltage - Output	Efficiency	Applications	Cord Length	Cord Length	Approval Agency	Region Utilized	Power (Watts)	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Form	Weight	Weight
XP POWER AKM36US24C2	Cord	IEC 320-C8	1.5 A	Barrel Plug	2.5 mm 5.5 mm	11 mm	40 °C	0 °C	1.33 "	50 mm	33.8 mm	108 mm	1.96 "	4.25 in	60601-1 62368-1	75 mW	24 V	CoC Tier 2 Level VI	ITE (Commercial) Medical	1.5 m	59 in	CB CE CSA TUV UL	International	36 W	Positive Center	90 VAC	264 VAC	Desktop (Class II)	80 g	0.176 lb
XP POWER AKM36US12C2	Cord	IEC 320-C8	3 A	Barrel Plug	2.5 mm 5.5 mm	11 mm	40 °C	0 °C	1.33 "	50 mm	33.8 mm	108 mm	1.96 "	4.25 in	60601-1 62368-1	75 mW	12 V	CoC Tier 2 Level VI	ITE (Commercial) Medical	1.5 m	59 in	CB CE CSA TUV UL	International	36 W	Positive Center	90 VAC	264 VAC	Desktop (Class II)	80 g	0.176 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 36 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
