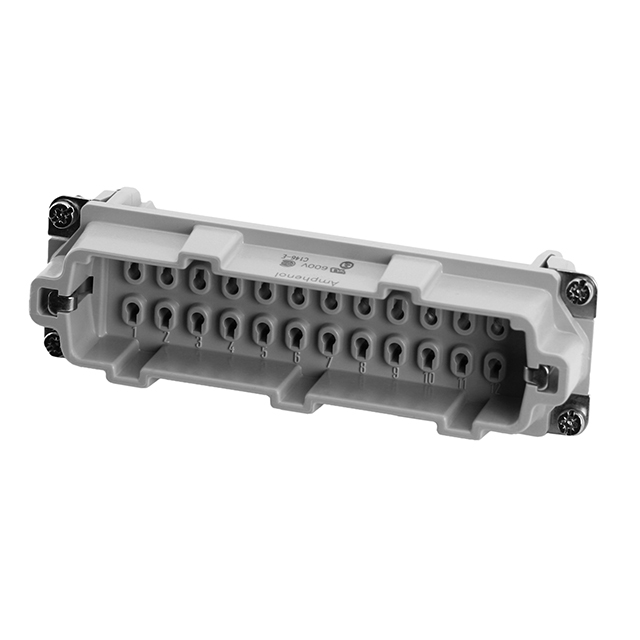

C14610A0240001

Active

Amphenol Tuchel Industrial

INSERT MALE 24POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT MALE 24POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610A0240001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	C 16-3
Current Rating (Amps)	10 A
Gender	Male
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E24
Termination Style	Crimp
Voltage Rating	600 V

Part	Color	Gender	Material Flammability Rating	Termination Style	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Current Rating (Amps)	Size	Contact Finish	Voltage Rating	Connector Type	Contact Type
Amphenol Tuchel Industrial C14610A0248101	Gray	Male	UL94 V-0	Screw	Polyamide (PA) Nylon	100 °C	-40 °C	Iron-Constantan (FE/KO)
Amphenol Tuchel Industrial C14610A0240021	Gray	Male	UL94 V-0	Screw		125 °C	-40 °C	Brass	10 A	E24	Silver	600 V
Amphenol Tuchel Industrial C14610A0240001	Gray	Male	UL94 V-0	Crimp		125 °C	-40 °C		10 A	E24		600 V	Insert without Contacts	C 16-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 14.43

General part information

Male Insert without Contacts Gray 24+Ground Position Crimp
