CA8B4,GY

Active

Serpac

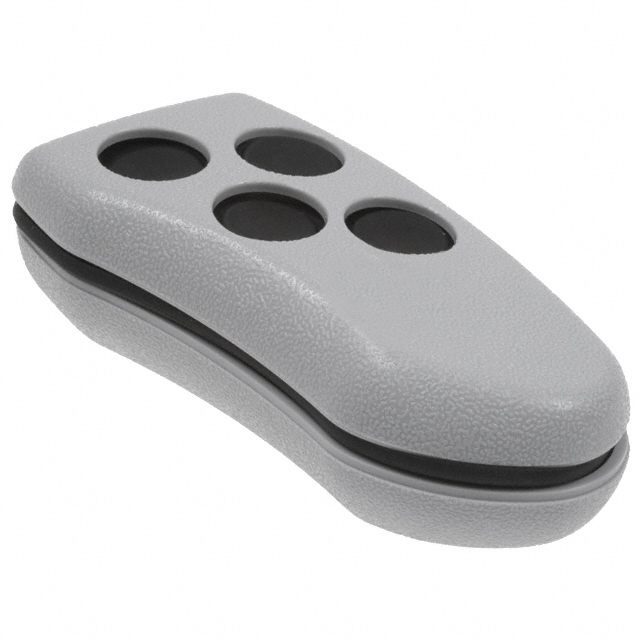

KEY FOB ABS GRAY 3.32"L X 1.87"W

Search across all available documentation for this part.

Active

Serpac

KEY FOB ABS GRAY 3.32"L X 1.87"W

Technical Specifications

Parameters and characteristics for this part

Specification	CA8B4,GY

Area (L x W)	6.21 in²
Area (L x W)	40.1 cm²
Color	Gray
Container Type	Key FOB
Design	Split Sides, Hand Held
Features	Buttons - 4
Height [z]	1 in
Height [z]	25.4 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP67
Size / Dimension [x]	84.33 mm
Size / Dimension [x]	3.32 in
Size / Dimension [y]	47.5 mm
Size / Dimension [y]	1.87 "
Weight	13.61 g
Weight	0.03 lb

Part	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W) [custom]	Area (L x W) [custom]	Design	Features	Weight	Weight	Ratings	Material Flammability Rating	Height [z]	Height [z]	Material	Container Type	Area (L x W)	Area (L x W)
Serpac CA8B4,BK	Black	47.5 mm	84.33 mm	1.87 "	3.32 in	40.1 cm˛	6.21 in˛	Hand Held Split Sides	Buttons - 4	13.61 g	0.03 lb	IP67	UL94 HB	1 in	25.4 mm	Plastic ABS	Key FOB
Serpac CA8B4,AL	Almond	47.5 mm	84.33 mm	1.87 "	3.32 in			Hand Held Split Sides	Buttons - 4	13.61 g	0.03 lb	IP67	UL94 HB	1 in	25.4 mm	Plastic ABS	Key FOB
Serpac CA8B4,GY	Gray	47.5 mm	84.33 mm	1.87 "	3.32 in			Hand Held Split Sides	Buttons - 4	13.61 g	0.03 lb	IP67	UL94 HB	1 in	25.4 mm	Plastic ABS	Key FOB	6.21 in²	40.1 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.19

General part information

Key FOB Plastic, ABS Gray Hand Held, Split Sides 3.320" L x 1.870" W (84.33mm x 47.50mm) X 1.000" (25.40mm)
