S30B-PUDSS-1

Active

JST Sales America Inc.

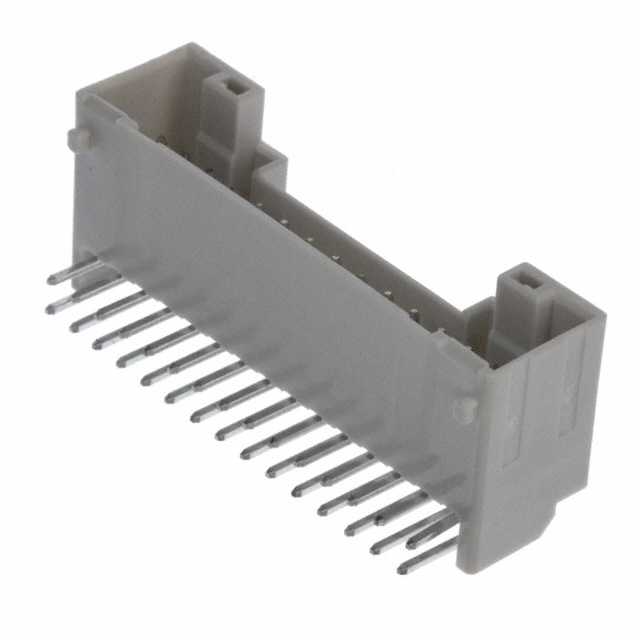

CONN HEADER R/A 30POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 30POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	S30B-PUDSS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Current Rating (Amps)	Shrouding	Connector Type	Number of Positions	Contact Shape	Style	Insulation Color	Mounting Type	Number of Rows	Insulation Height	Insulation Height	Contact Finish - Post	Fastening Type	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Features	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Insulation Material	Voltage Rating	Number of Positions Loaded	Termination
JST Sales America Inc. S30B-PUDSS-1	3 A	Shrouded - 4 Wall	Header	30	Square	Board to Cable/Wire	Natural	Through Hole Right Angle	2	0.335 "	8.51 mm	Tin	Latch Holder	Copper Alloy	UL94 V-0	-25 °C	85 °C	0.118 in	3 mm	Board Guide	0.079 in	2 mm	0.079 in	2 mm	Male Pin	Polyamide (PA66) Nylon 6/6 Glass Filled	250 VDC	All	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 30 position 0.079" (2.00mm)
