TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

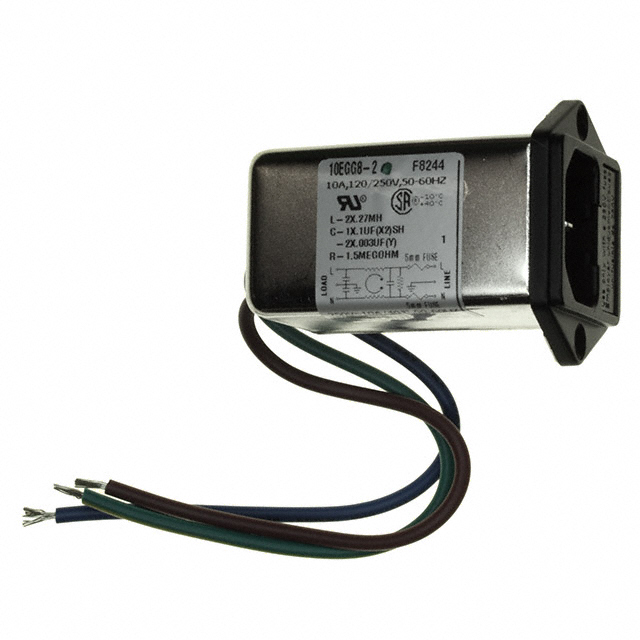

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	3-1609115-6	1609115 Series

Accomodates a Fuse	True	True
Applications	-	General Purpose
Approval Agency	UL, VDE, CSA	UL, VDE, CSA, UR, TUV
Configuration	-	Single Stage
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current	-	125 A
Current Rating - Appliance Inlet	10 A	10 A
Current Rating - Filter	10 A	10 A
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial, DC
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange	Panel Mount, Flange, Chassis Mount
Operating Temperature	-	55 °C
Operating Temperature	-	-10 °C
Panel Cutout Dimensions [x]	28.96 mm	28.96 mm
Panel Cutout Dimensions [y]	33.02 mm	33.02 mm
Termination	Wire Leads	Quick Connect, Wire Leads
Termination	-	0.25 in
Termination	-	6.3 mm
Termination Style	-	Threaded Post (1/4-20)
Voltage - Rated DC	-	80 V
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Fuse Holder, Drawer	Mounting Type	Current Rating - Appliance Inlet	Connector Type	Connector Style	Filter Type	Termination	Termination	Termination	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Approval Agency	Current Rating - Filter	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Voltage - Rated DC	Configuration	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Current	Applications
TE Connectivity Corcom Filters 3-1609115-4	Fuse Holder	Flange, Panel Mount	10 A	Receptacle, Male Blades - Module	IEC 320-C14	Filtered (EMI, RFI) - Commercial	0.25 in	6.3 mm	Quick Connect	250 VAC	120 VAC	CSA, UL, VDE	10 A	33.02 mm	28.96 mm
TE Connectivity Corcom Filters 3-1609115-6	Fuse Holder, Twin Fused	Flange, Panel Mount	10 A	Receptacle, Male Blades - Module	IEC 320-C14	Filtered (EMI, RFI) - Commercial			Wire Leads	250 VAC	120 VAC	CSA, UL, VDE	10 A	33.02 mm	28.96 mm
TE Connectivity Corcom Filters 3-1609115-3	Fuse Holder, Twin Fused	Flange, Panel Mount	10 A	Receptacle, Male Blades - Module	IEC 320-C14	Filtered (EMI, RFI) - Commercial	0.25 in	6.3 mm	Quick Connect	250 VAC	120 VAC	CSA, UL, VDE	10 A	33.02 mm	28.96 mm
TE Connectivity Corcom Filters 6-1609115-2		Chassis Mount				DC						CSA, TUV, UR				Threaded Post (1/4-20)	80 V	Single Stage	55 °C	-10 °C	125 A	General Purpose
