TE Connectivity Raychem Cable Protection

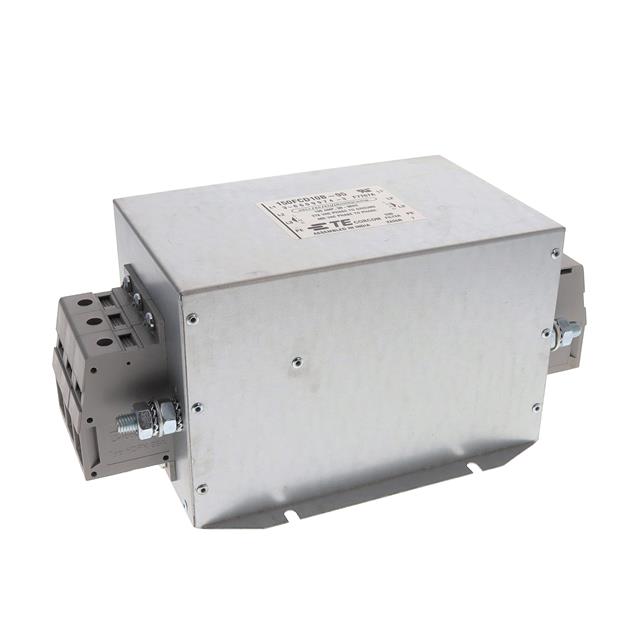

LINE FILTER 150A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 150A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	3-6609974-3

Applications	Regenerative Motor Drive
Configuration	Single Stage
Current	150 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Phase)	480 V

Part	Current	Applications	Configuration	Filter Type	Voltage - Rated AC (Phase to Phase)	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Raychem Cable Protection 2-6609974-1	180 A	Regenerative Motor Drive	Single Stage	Three Phase (Delta)	480 V	60 Hz	50 Hz	Terminal Block	Chassis Mount	-10 °C	40 °C
TE Connectivity Raychem Cable Protection 1-6609974-3	50 A	Regenerative Motor Drive	Single Stage	Three Phase (Delta)	480 V	60 Hz	50 Hz	Terminal Block	Chassis Mount	-10 °C	40 °C
TE Connectivity Raychem Cable Protection 3-6609974-6	230 A	Regenerative Motor Drive	Single Stage	Three Phase (Delta)	480 V	60 Hz	50 Hz	Terminal Block	Chassis Mount	-10 °C	40 °C
TE Connectivity Raychem Cable Protection 6609974-9	25 A	Regenerative Motor Drive	Single Stage	Three Phase (Delta)	480 V	60 Hz	50 Hz	Terminal Block	Chassis Mount	-10 °C	40 °C
TE Connectivity Raychem Cable Protection 3-6609974-3	150 A	Regenerative Motor Drive	Single Stage	Three Phase (Delta)	480 V	60 Hz	50 Hz	Terminal Block	Chassis Mount	-10 °C	40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 150 A 50/60Hz Single Stage Terminal Block
