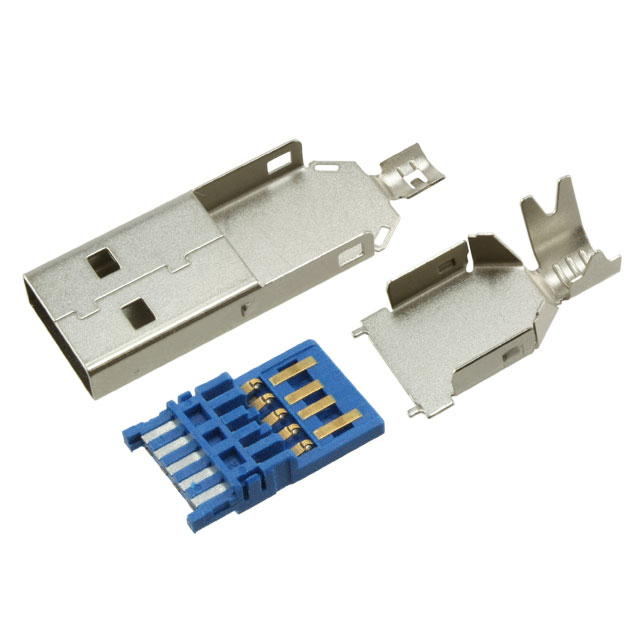

A-USBPA-3
ActiveAssmann WSW Components
CONN PLUG USB3.2 TYPA 9P SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-USBPA-3
ActiveAssmann WSW Components
CONN PLUG USB3.2 TYPA 9P SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-USBPA-3 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Gender | Plug |
| Insulation Color | Blue |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Steel (SPCC) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.38 | |
| 10 | $ 1.20 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.07 | |||
| 300 | $ 0.97 | |||
| 500 | $ 0.89 | |||
| 1000 | $ 0.77 | |||
| 2500 | $ 0.71 | |||
Description
General part information
A-USBPA Series
USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Plug Connector 9 Position Free Hanging (In-Line)
