4427-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

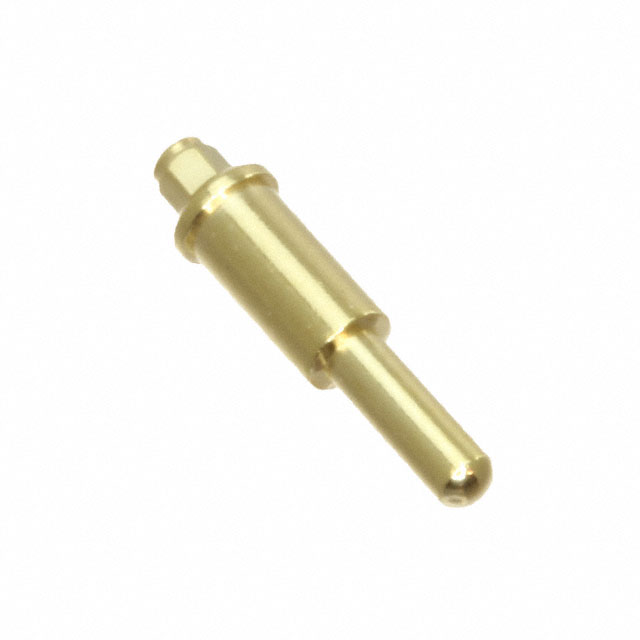

PRESS-FIT PCB PIN
Deep-Dive with AI
Search across all available documentation for this part.
4427-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT PCB PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4427-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.112 " |
| Flange Diameter [diameter] | 2.84 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.368 in |
| Length - Above Flange [x] | 9.35 mm |
| Length - Below Flange [x] | 1.6 mm |
| Length - Below Flange [x] | 0.063 in |
| Length - Overall [x] | 0.456 in |
| Length - Overall [x] | 11.58 mm |
| Mounting Hole Diameter [diameter] | 1.73 mm |
| Mounting Hole Diameter [diameter] | 0.068 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.062 in |
| Pin Size - Above Flange [diameter] | 1.57 mm |
| Pin Size - Below Flange [diameter] | 1.47 mm |
| Pin Size - Below Flange [diameter] | 0.058 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.51 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.31 | |||
| 2500 | $ 0.30 | |||
Description
General part information
4427-0 Series
PC Pin Terminal Connector Through Hole Gold 0.062" (1.57mm) Dia
Documents
Technical documentation and resources
No documents available
