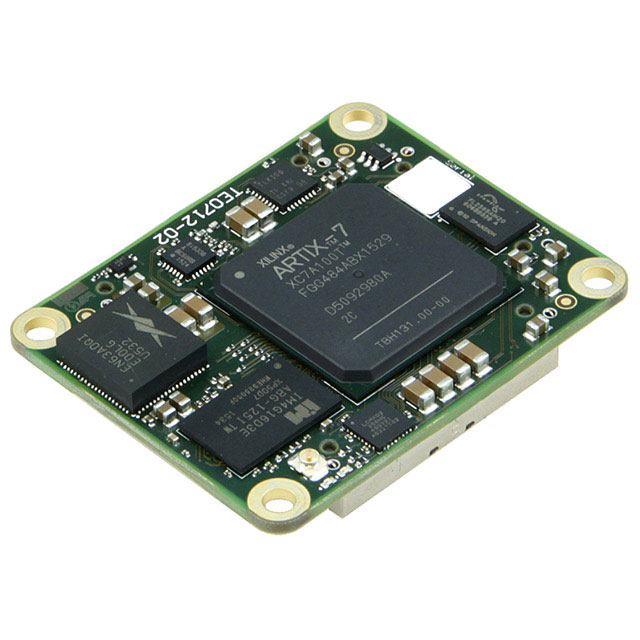

TE0712-02-100-2C3

Obsolete

Trenz Electronic

IC MOD ARTIX7 A100T 200MHZ 1GB

Search across all available documentation for this part.

Obsolete

Trenz Electronic

IC MOD ARTIX7 A100T 200MHZ 1GB

Technical Specifications

Parameters and characteristics commom to parts in this series

IC MOD ARTIX7 A100T 200MHZ 1GB

Part	RAM Size	Core Processor	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Module/Board Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Flash Size	Speed
Trenz Electronic TE0712-02-100-1I	1 GB	Artix-7 A100T	Samtec LSHM	85 °C	-40 °C	FPGA Core	50 mm	1.97 "	40 mm	1.57 "	32 MB	200 MHz
Trenz Electronic TE0712-02-100-2C3	1 GB	Artix-7 A100T	Samtec LSHM	70 °C	0 °C	FPGA Core	50 mm	1.97 "	40 mm	1.57 "	32 MB	200 MHz
Trenz Electronic TE0712-02-200-1I	1 GB	Artix-7 A200T	Samtec LSHM	85 °C	-40 °C	FPGA Core	50 mm	1.97 "	40 mm	1.57 "	32 MB	200 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TE0712 Embedded Module Artix-7 A100T 200MHz 1GB 32MB

Technical documentation and resources

No documents available
