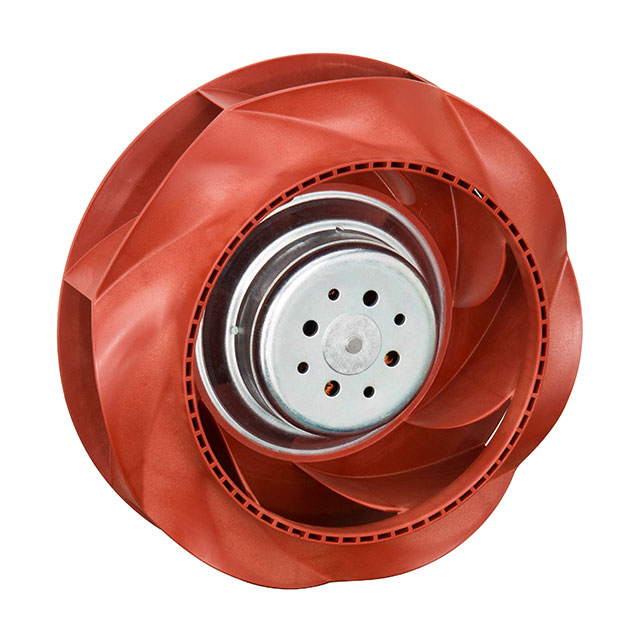

RER190-39/14/2TDMLO

Active

ebm-papst Inc.

FAN IMP MTRZD 190X69MM 24VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 190X69MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RER190-39/14/2TDMLO

Air Flow	10.7 m³/min
Air Flow	382 CFM
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	55000 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	3000 RPM
Size / Dimension	Round
Size / Dimension [diameter]	190 mm
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	30 V
Voltage Range [Min]	16 VDC
Weight	900 g
Weight	1.9 lbs
Width [x]	69 mm

Part	RPM	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Width [x]	Termination	Ingress Protection	Bearing Type	Voltage - Rated	Power (Watts)	Approval Agency	Size / Dimension	Size / Dimension [diameter]	Voltage - Rated [custom]	Lifetime @ Temp.	Operating Temperature [Max]	Material - Blade	Features
ebm-papst Inc. RER190-39/14/2TDLOU	2900 RPM	16 VDC	30 V	376.7 CFM	10.55 mł/min	861.8 g	1.9 lbs	60 °C	-20 °C	-20 C	60 °C	Motorized Impellers	69 mm	2 Wire Leads	IP68 - Dust Tight Waterproof	Ball	24 VDC	57.1 W	UL	Round	190 mm
ebm-papst Inc. RER190-39/18/2TDO	4400 RPM	36 VDC	72 VDC	571.3 CFM	16 m³/min	900 g	1.9 lbs		-20 °C	-20 C	65 °C	Motorized Impellers	69 mm	4 Wire Leads		Ball		148 W		Round	190 mm	48 VDC	40000 Hrs	65 °C	Plastic Fiberglass Reinforced	PWM Control Speed Sensor (Tach)
ebm-papst Inc. RER190-39/14/2TDMLO	3000 RPM	16 VDC	30 V	382 CFM	10.7 m³/min	900 g	1.9 lbs	60 °C	-20 °C	-20 C	60 °C	Motorized Impellers	69 mm	4 Wire Leads		Ball	24 VDC			Round	190 mm		55000 Hrs		Plastic Fiberglass Reinforced	PWM Control Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	32	$ 177.16

General part information

Fan Motorized Impellers 24VDC Round - 190mm Dia Ball 382.0 CFM (10.70m³/min) 4 Wire Leads
