C4AEJBU4270A1WJ

Active

KEMET

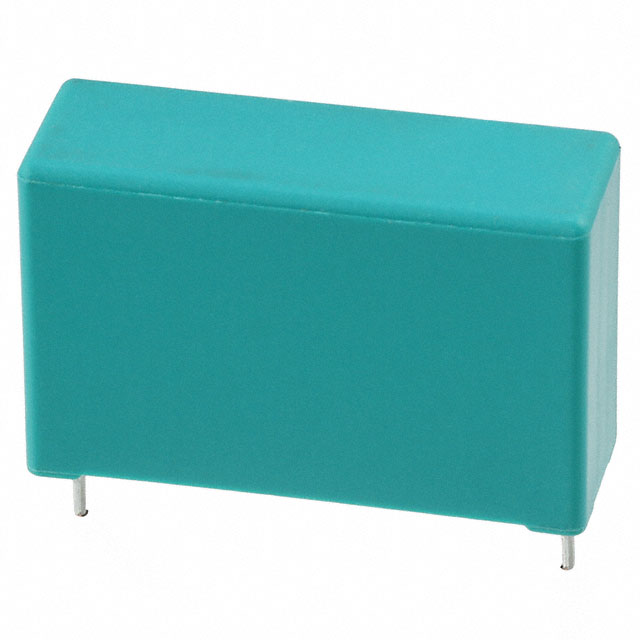

CAP FILM 2.7UF 5% 700VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Film Capacitors Catalog Datasheet

C4AEJBU4270A1WJ

Active

KEMET

CAP FILM 2.7UF 5% 700VDC RADIAL

Deep-Dive with AI

DocumentsPower Film Capacitors Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4AEJBU4270A1WJ

Applications	Switching, High Frequency, DC Filtering, DC Link
Capacitance	2.7 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	18.3 mOhms
Height - Seated (Max) [Max] [z]	0.795 "
Height - Seated (Max) [Max] [z]	20.2 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	700 VDC

C4AEJB Series

Part	Voltage Rating - DC	Applications	Capacitance	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Package / Case	Mounting Type	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing
KEMET C4AEJBW5300A3LJ	700 VDC	DC Filtering DC Link High Frequency Switching	30 µF	Metallized Polypropylene (PP)	42 mm	1.181 in	1.654 in	30 mm	5 %	85 °C	-40 °C	1.772 in	45 mm	PC Pins	Radial - 4 Leads	Through Hole	3.2 mOhm	37.5 mm	1.476 in
KEMET C4AEJBU4800A11J	700 VDC	DC Filtering DC Link High Frequency Switching	8 µF	Metallized Polypropylene (PP)					5 %	85 °C	-40 °C	1.15 in	29.2 mm	PC Pins	Radial	Through Hole	7.3 mOhms	27.5 mm	1.083 in
KEMET C4AEJBW5450A3MJ	700 VDC	DC Filtering DC Link High Frequency Switching	45 µF	Metallized Polypropylene (PP)	57.5 mm	1.181 in	2.264 in	30 mm	5 %	85 °C	-40 °C	1.783 in	45.3 mm	PC Pins	Radial - 4 Leads	Through Hole	3.6 mOhms	52.5 mm	2.067 in
KEMET C4AEJBU4400A1XJ	700 VDC	DC Filtering DC Link High Frequency Switching	4 µF	Metallized Polypropylene (PP)	31.5 mm	0.512 in	1.24 in	13 mm	5 %	85 °C	-40 °C	0.992 in	25.2 mm	PC Pins	Radial	Through Hole	12.9 mOhms	27.5 mm	1.083 in
KEMET C4AEJBW5200A3JJ	700 VDC	DC Filtering DC Link High Frequency Switching	20 µF	Metallized Polypropylene (PP)	42.5 mm	1.102 in	1.673 in	28 mm	5 %	85 °C	-40 °C	1.465 in	37.2 mm	PC Pins	Radial - 4 Leads	Through Hole	4.8 mOhms	37.5 mm	1.476 in
KEMET C4AEJBU4500A1YJ	700 VDC	DC Filtering DC Link High Frequency Switching	5 µF	Metallized Polypropylene (PP)	31.5 mm	0.551 in	1.24 in	14 mm	5 %	85 °C	-40 °C	1.11 in	28.2 mm	PC Pins	Radial	Through Hole	10.7 mOhms	27.5 mm	1.083 in
KEMET C4AEJBU4270A1WJ	700 VDC	DC Filtering DC Link High Frequency Switching	2.7 µF	Metallized Polypropylene (PP)					5 %	85 °C	-40 °C	0.795 "	20.2 mm	PC Pins	Radial	Through Hole	18.3 mOhms	27.5 mm	1.083 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	256	$ 2.68

Description

General part information

C4AEJB Series

2.7 µF Film Capacitor 700V Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

Power Film Capacitors Catalog

Datasheet
