1-1337567-0

Active

TE Connectivity AMP Connectors

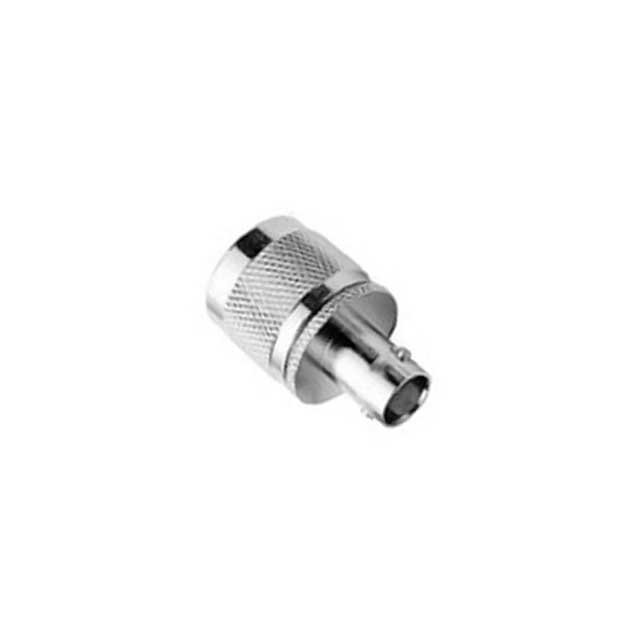

CONN ADAPT N PLUG TO BNC JACK

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT N PLUG TO BNC JACK

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337567-0

Adapter Series	BNC to N
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT N PLUG TO BNC JACK

Part	Adapter Series	Adapter Type	Conversion Type	Impedance	Body Finish	Frequency - Max [Max]	Body Material	Convert From (Adapter End)	Convert To (Adapter End)	Mounting Type	Center Contact Material	Center Contact Plating	Dielectric Material	Fastening Type	Style
TE Connectivity AMP Connectors 1-1337567-0	BNC to N	Plug to Jack	Between Series	50 Ohms	Nickel	4 GHz	Brass	N Plug, Male Pin	BNC Jack, Female Socket	Free Hanging (In-Line)	Brass	Gold	Polytetrafluoroethylene (PTFE)	Bayonet Lock, Threaded	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector N Plug, Male Pin To BNC Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
