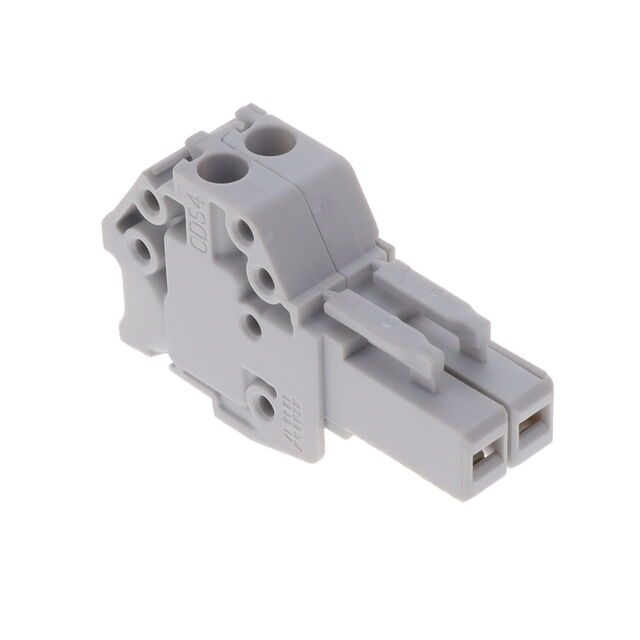

1SNK805727R0000

Active

TE Connectivity ENTRELEC

AUT SNK PLUGGABLE

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

AUT SNK PLUGGABLE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1SNK805727R0000	1SNK8 Series

Color	Gray	Gray
Current - IEC	29 A	29 A
Current - UL	28 A	28 A
Features	-	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height [z]	39.37 mm	39.37 mm
Insulation Height [z]	1.55 in	1.55 in
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	2	1 - 2
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Positions Per Level	2	1 - 2
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	800 V	800 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	24 AWG	24 AWG
Wire Gauge or Range - AWG [Min]	10 AWG	10 AWG
Wire Gauge or Range - mm² [Max]	4 mm²	4 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²
Wire Strip Length	10.5 mm	10.5 mm

AUT SNK PLUGGABLE

Part	Number of Levels	Housing Material	Voltage - IEC	Insulation Height [z]	Insulation Height [z]	Features	Termination Style	Mounting Type	Current - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions	Material Flammability Rating	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Color	Wire Strip Length	Current - IEC	Positions Per Level	Type
TE Connectivity ENTRELEC 1SNK805714R0000	1	Polyamide (PA), Nylon	800 V	39.37 mm	1.55 in	Interlocking (Side)	Screw - Rising Cage Clamp	Free Hanging (In-Line)	28 A	0.2 mm²	4 mm²	1	UL94 V-0	10 AWG	24 AWG	300 V	-55 °C	110 °C	Gray	10.5 mm	29 A	1	Plug, Female Sockets
TE Connectivity ENTRELEC 1SNK805727R0000	1	Polyamide (PA), Nylon	800 V	39.37 mm	1.55 in		Screw - Rising Cage Clamp	Free Hanging (In-Line)	28 A	0.2 mm²	4 mm²	2		10 AWG	24 AWG	300 V	-55 °C	110 °C	Gray	10.5 mm	29 A	2	Plug, Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line)
