XZM2DG53W-6
ActiveSunLED

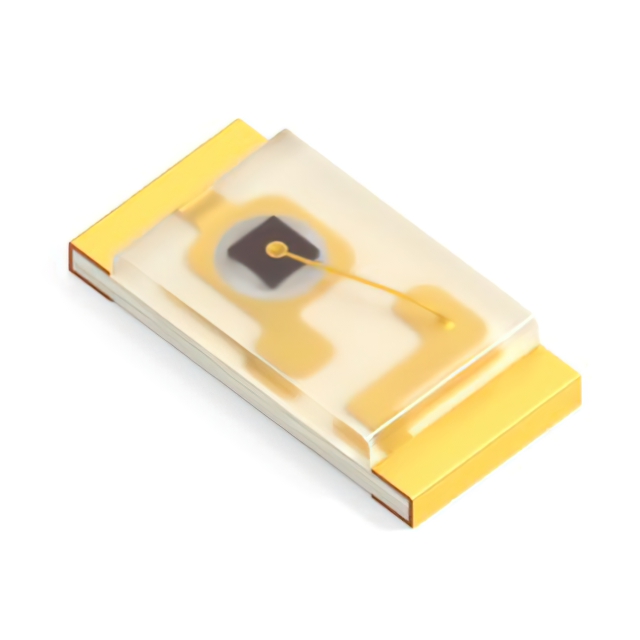

LED GREEN CLEAR 0603 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZM2DG53W-6
ActiveSunLED
LED GREEN CLEAR 0603 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZM2DG53W-6 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.28 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 955 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 520 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.97 | |
| 10 | $ 0.68 | |||
| 100 | $ 0.50 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.40 | |||
| 2000 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 0.97 | ||
| 10 | $ 0.68 | |||
| 100 | $ 0.50 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.40 | |||
| 2000 | $ 0.37 | |||
| Tape & Reel (TR) | 4000 | $ 0.36 | ||
| 8000 | $ 0.34 | |||
| 12000 | $ 0.33 | |||
| 20000 | $ 0.32 | |||
| 28000 | $ 0.32 | |||
Description
General part information
XZM2DG53 Series
Green 525nm LED Indication - Discrete 3.2V 0603 (1608 Metric)
