300X11129X

Active

Amphenol CONEC

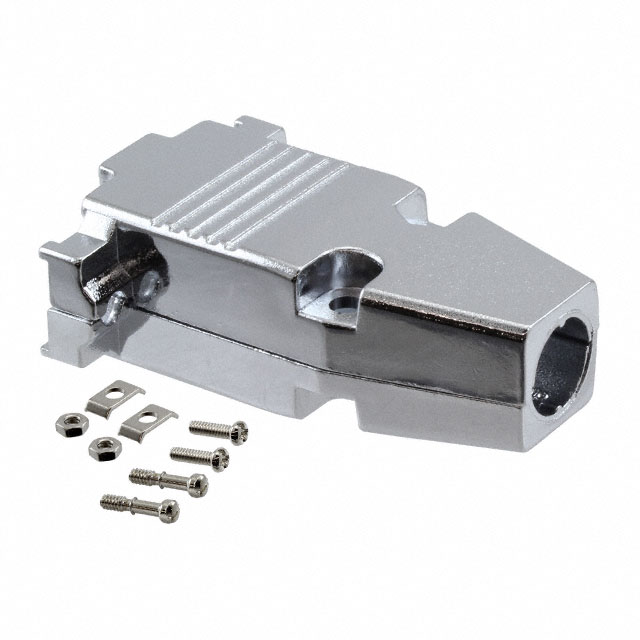

9 POS HOOD DIE CAST SHORT JACK

Search across all available documentation for this part.

Active

Amphenol CONEC

9 POS HOOD DIE CAST SHORT JACK

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Plating	Number of Positions	Material	Accessory Type	Compatible Shell Size	Primary Material	Cable Exit	Compatible D-Sub Size	Cable Type	Features	Hardware	Color
Amphenol CONEC 300X11159X	Shielded	Nickel	37	Metal Zinc	Two Piece Backshell	C	Metal	180 °	37pos HD62pos	Round	Mating Screws 4-40
Amphenol CONEC 300X11199X	Shielded	Zinc		Zinc Die Cast	Two Piece Backshell	B	Metal	180 °	25pos HD44pos	Round	IP20 Mating Screws 4-40	Assembly Hardware	Silver
Amphenol CONEC 300X11179X	Shielded	Zinc	9	Zinc Die Cast	Two Piece Backshell	E	Metal	180 °	9pos HD15pos	Round	IP20 Mating Screws 4-40	Assembly Hardware	Silver
Amphenol CONEC 300X11119X
Amphenol CONEC 300X11129X	Shielded	Metal	9	Zinc Die Cast	Two Piece Backshell	E	Metal	180 °	9pos HD15pos	Round	IP20 Mating Screws 4-40	Assembly Hardware	Silver
Amphenol CONEC 300X11149X	Shielded	Nickel		Metal Zinc	Two Piece Backshell	B	Metal	180 °	25pos HD44pos	Round	Mating Screws 4-40
Amphenol CONEC 300X11169X	Shielded	Nickel	50	Metal Zinc	Two Piece Backshell	D	Metal	180 °	50pos HD78pos	Round	Mating Screws 4-40
Amphenol CONEC 300X11139X	Shielded	Nickel	15	Metal Zinc	Two Piece Backshell	A	Metal	180 °	15pos HD26pos	Round	Mating Screws 4-40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Two Piece Backshell Connector Silver 180° Shielded
