7007-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

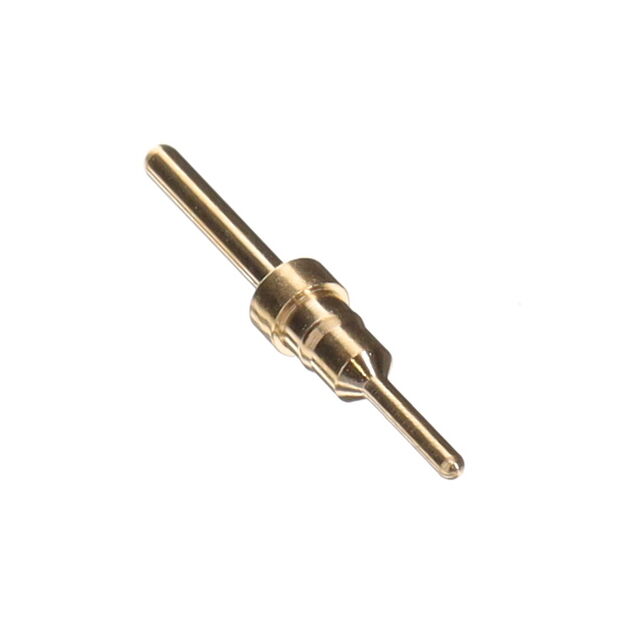

CONN PC PIN CIRC .030DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
7007-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .030DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7007-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Below Flange [x] | 5.36 mm |
| Length - Below Flange [x] | 0.211 in |
| Length - Overall [x] | 11.13 mm |
| Length - Overall [x] | 0.438 in |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.76 mm |
| Pin Size - Above Flange [diameter] | 0.03 in |
| Pin Size - Below Flange | 0.024 in |
| Pin Size - Below Flange | 0.61 mm |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.91 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.63 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.50 | |||
| 3000 | $ 0.45 | |||
Description
General part information
7007-0 Series
PC Pin Terminal Connector Through Hole Gold 0.030" (0.76mm) Dia
Documents
Technical documentation and resources
No documents available
