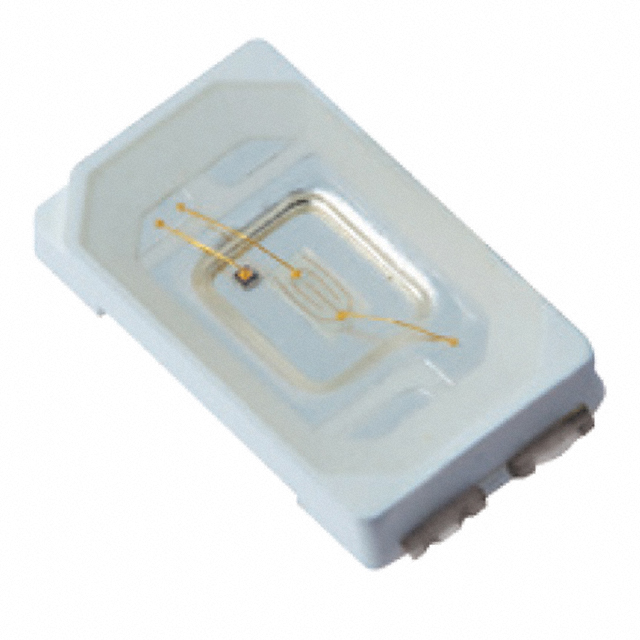

XZMOLA143S

Active

SunLED

LED RED 625NM SMD

Search across all available documentation for this part.

Active

SunLED

LED RED 625NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	XZMOLA143S

Color	Red
Current - Test	150 mA
Height - Seated (Max) [Max]	1.02 mm
Height - Seated (Max) [Max] [z]	0.04 "
Lumens/Watt @ Current - Test	37 lm/W
Luminous Flux @ Current/Temperature	14 lm
Mounting Type	Surface Mount
Package / Case	Nonstandard SMD
Size / Dimension [x]	5.3 mm
Size / Dimension [x]	0.209 "
Size / Dimension [y]	0.118 in
Size / Dimension [y]	3 mm
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	60 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.5 V
Wavelength	625 nm

Part	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Wavelength	Viewing Angle	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Supplier Device Package	Mounting Type	Thermal Resistance of Package [diameter]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Lumens/Watt @ Current - Test	Color
SunLED XZMOLA143S	2.5 V	14 lm	625 nm	120 °	0.04 "	1.02 mm	SMD	Surface Mount	60 °C/W	Nonstandard SMD	0.118 in	5.3 mm	0.209 "	3 mm	150 mA	37 lm/W	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color - Red 625nm (Typ) Nonstandard SMD
